[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers
![[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers](https://www.novatel.ie/image/cache/catalog/products/poynting-xpol-2-4g-lte-outdoor-antenna_01-640x640.png "[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers")
![[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers](https://www.novatel.ie/image/cache/catalog/products/poynting-xpol-2-4g-lte-outdoor-antenna_02-640x640.png "[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers")
![[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers](https://www.novatel.ie/image/cache/catalog/products/poynting-xpol-2-4g-lte-outdoor-antenna_03-640x640.png "[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers")
![[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers](https://www.novatel.ie/image/cache/catalog/products/poynting-xpol-2-ts9-sma-adapter-cable-640x640.png "[EOL] Poynting XPOL-2 4G: LTE Outdoor Panel Directional Antenna - Improves Signal Reception for Modems/Routers")
Available to Order
- Stock: EOL
- Brand: Poynting
- Model: XPOL-2
- Weight: 1.98kg
- Dimensions: 37.50cm x 26.70cm x 9.80cm
- EAN: 6009693810051
- MPN: A-XPOL-0002-V2
Alternative to XPOL-2
Thanks for looking, however, this product is now EOL. Please check on this link for the new version of XPOL-2 or XPOL-24 instead.
The XPOL-2 is a cross polarized outdoor MIMO antenna for 4G/LTE, 3G, and GSM. It’s a multi-in-one signal receiver for; LTE, GSM 900/1800, and 2.4GHz Wi-Fi, and it is backward compatible with 3G and 2G technologies. This model is a two-antenna system, it is cross-polarized and housed in one all-weather proof enclosure, which makes it ideal for all-purpose rural or urban deployment and helps to achieve reliable/optimal performance. Highly recommended for 4G/LTE signal boosting for any network operator in Ireland, the UK, and Europe.
The XPOL-2 should enhance your signal reception and increase connection stability (you may contact us for any enquiries).

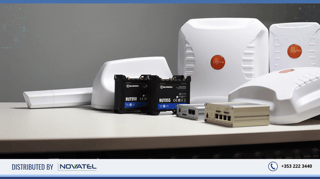

This directional panel antenna (some people call it Aerial) can be used on any cellular modems, IoT devices, low-cost routers, and other customer premise equipment, that either has a double SMA port or TS-9 port (needs SMA/TS9 adapter). See compatible models below for reference.
Compatible Cellular & Mobile Routers/Modems
- Teltonika TCR100
- Tenda 4G680v2
- TP-Link Archer MR200, MR400, and TL-MR6400
- Huawei B593 or Speedport II, B315, B525, B535, B593
- Teltonika RUT240, RUT955, RUT955, RUTX09, RUTX11, RUTX12
- …and a lot more
The XPOL-2 is one of the most recommended LTE antenna system in various Irish, UK and South African broadband forum sites. It is known to work well with known router brands like Huawei, Tenda, TP-Link, Peplink, Teltonika, Celerway, EnGenius, and a lot more.
When connecting the antenna, it will be detected as two external antennas when checking on the CPE’s Administration Dashboard.
Please refer to the image below.
You can use this antenna with the following Irish Network Operators, or any network operators UK, EU and the rest of the world:
- O2
- Three
- Meteor
- mobile
- Tesco Mobile
- Vodafone (Formerly Eircell)
Why Choose Poynting Antenna?
- You get what you pay for
- Factory supplied with high-quality, low-loss coaxial cable
- 5-7 meter cables included with some products (directional antennas, not omnis)
- DC-short built into the antenna system (forces antenna detection and also helps with vicinity lightning strikes)
Features
- All weather-proof and Light-weight
- Passively boosts signal reception for 4G, 3G, 2G, and GSM applications
- 9dBi cross-polarised high-gain directional antenna for routers or signal repeaters
- Significantly improves signal reliability, and provides a stable and high-quality wireless connection
- Window or pole mountable; easy to setup for quick fixed broadband connection needs; great for mobile pos and kiosks
- Ideal for rural application, where network operator mast is too far from you current location, great for long distance and line-of-sight network connection
Application Areas
- Urban and rural areas
- Unstable cellular connection
- Slow data transmission connection areas
- Increase system transmission reliability
- Poor data signal reception (indoor or outdoor)
- LTE fringe areas (close to an LTE area, but just out of reach)
- Network operator flexibility - as the antenna is wide band, a new antenna is not needed per network operator.
Technical Specification
| Gain (Max) | 9 dBi Max Gain |
| Polarisation | 0° and 90° |
| Feed Power Handling | 10 W |
| Nominal Input Impedance | 50 Ohm (nominal) |
| Dimensions (l x w x d) | 255 x 255 x 80 mm (without bracket) |
| Mounting | Wall or pole mount |
| Weight | 1,55 kg |
| Mounting Bracket | up to 60mm poles |
| Connector | 2 x SMA male |
| Cable Loss | 0.35 dB/m |
| Material | ABS (halogen free) |
| Color |
Pantone – Cool Gray (1C) RAL 7047 |
| Flammability Rating | UL 94-V0 |
| Environmental Conditions | Outdoor/Indoor |
| Operating Temperature | -40 to +70°C |
| RoHS | Compliant |
| VSWR | < 2.5:1 |
| Water Ingress Rating | IP 65 (NEMA 4X) |
Downloads
- Antenna: A-XPOL-0002-V2
- Mounting Bracket: 1 x Z-shaped mounting bracket, suitable for wall or pole mount installation
- Cable Length: 5m ±5%
- Cable Type: Black twin Siamese HDF 195
- Connector: 2X SMA (Male, Gold plated). NOTE: The cables and connectors are factory-mounted to the antenna.
Ordering Information
| SKU | A-XPOL-0002-V2 |
|---|---|
| EAN | 6009693810051 |
| HS Code | #85291069 |
| Packaged Weight | 1.98kg |
| Packaged Dimensions | 375 x 267 x 98 mm |
| Master Box QTY | 10 |
| Master Box Weight | 20.56kg |
| Master Box Dimensions | 550 x 390 x 500mm |
