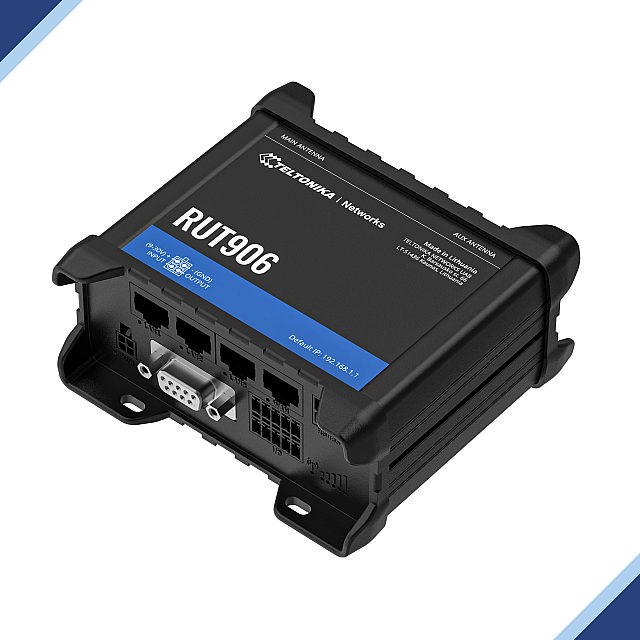

Teltonika RUT906: Cat4 4G LTE Industrial Dual-SIM RS485/RS232 Router
- Stock: In Stock
- Brand: Teltonika Networks
- Model: RUT906
- Weight: 295.00g
- Dimensions: 109.50mm x 50.00mm x 100.00mm
- MPN: RUT906
Available Options
Read more about eSIM on this page. You can contact us for MOQ details.
Included in the Price of this Product is the WEEE Recycling Charge.
Are you looking for a reliable, versatile, and powerful 4G router for your industrial IoT applications? Do you need a device that can support serial interfaces, MQTT, BACnet, I/Os, Ethernet, and more? Do you want a router that can handle harsh environments, dual SIM, auto-failover, and backup WAN? If you answered yes to any of these questions, then you need the Teltonika RUT906.
The RUT906 is a cellular 4G router designed for industrial IoT applications, such as remote monitoring, automation, security, and smart city solutions. It supports serial interfaces RS232 and RS485, which allow you to connect legacy devices and sensors to the cloud. As mentioned above, it supports MQTT (which is a protocol that lets devices talk to each other over the internet. It’s like a chat app for machines, but with less emojis and more data. MQTT is designed for devices that have limited resources or network bandwidth, such as sensors, cameras, or controllers), BACnet, OPC UA, and other protocols, which enable you to integrate the router with various IoT platforms and systems. Moreover, it has I/Os, Ethernet, and WiFi, which provide you with multiple connectivity options for your devices and networks.
This cellular router is not only feature-rich, but also robust and reliable. It is equipped with GNSS and failsafe features, such as dual SIM, auto-failover, and backup WAN, which ensure uninterrupted and secure data transmission. It also has a rugged metal enclosure, which protects the router from dust, water, vibration, and extreme temperatures. The router is easy to install and configure, thanks to its intuitive web interface and RutOS software, which offer advanced networking solutions and customization options.
Key Features of the Teltonika RUT906
4G LTE (Cat 4): Enjoy fast and stable internet connection with up to 150 Mbps download speeds.
Dual SIM: Switch between two SIM cards automatically or manually, based on signal strength, data limit, SMS limit, roaming, network availability, or other criteria.
Serial interfaces (RS232 & RS485): Connect legacy devices and sensors to the cloud, using Modbus RTU, Modbus TCP, or custom protocols.
MQTT, BACnet, OPC UA, and more: Integrate the router with various IoT platforms and systems, using standard or custom protocols.
I/Os, Ethernet, and WiFi: Connect multiple devices and networks, using digital and analog inputs and outputs, Ethernet ports, and WiFi access point or station modes.
GNSS: Track the router’s location and synchronize its time, using GPS, GLONASS, BeiDou, Galileo, or QZSS satellites.
RutOS: Manage and customize the router’s settings and features, using a user-friendly web interface and a powerful operating system.
Rugged metal enclosure: Protect the router from dust, water, vibration, and extreme temperatures, with an IP30-rated aluminum case.
Why Teltonika RUT906
The RUT906 is not just another 4G router. It is a unique device that offers you the following advantages over similar products on the market:
Versatility: It supports serial interfaces RS232 and RS485, which are rare and valuable features for industrial IoT applications. These interfaces allow you to connect legacy devices and sensors to the cloud, using Modbus RTU, Modbus TCP, or custom protocols. You can also use MQTT, BACnet, OPC UA, and other protocols, to integrate the router with various IoT platforms and systems. Moreover, you can use I/Os, Ethernet, and WiFi, to connect multiple devices and networks, using digital and analog inputs and outputs, Ethernet ports, and WiFi access point or station modes.
Reliability: It is equipped with GNSS and failsafe features, such as dual SIM, auto-failover, and backup WAN, which ensure uninterrupted and secure data transmission. The router can switch between two SIM cards automatically or manually, based on signal strength, data limit, SMS limit, roaming, network availability, or other criteria. It can also use Ethernet or WiFi as backup WAN, in case of cellular network failure. Additionally, the router can track its location and synchronize its time, using GPS, GLONASS, BeiDou, Galileo, or QZSS satellites.
Robustness: It has a rugged metal enclosure, which protects the router from dust, water, vibration, and extreme temperatures. The router has an IP30-rated metal case, which can withstand dust particles up to 2.5 mm, water droplets falling at any angle, vibration up to 2.5 g, and temperatures from -40°C to +75°C. The router also has a DIN rail mounting option, which allows you to install it securely and conveniently in any industrial setting.
Ease of use: It is easy to install and configure, thanks to its intuitive web interface and RutOS software. The router has a user-friendly web interface, which allows you to access and manage the router’s settings and features, using any web browser. The router also has a powerful operating system, which offers advanced networking solutions and customization options, such as VPN, firewall, QoS, DDNS, SMS control, hotspot, and more. You can also create custom scripts, rules, and scenarios, to suit your specific needs.
Benefits of Using the Teltonika RUT906
By using the Teltonika RUT906, you can enjoy the following benefits:
Improve Efficiency: Streamline your industrial IoT applications, by connecting and integrating your devices and systems with the cloud, using serial interfaces, MQTT, BACnet, OPC UA, and other protocols.
Save Time and Money: Reduce downtime and maintenance costs, by ensuring uninterrupted and secure data transmission, using dual SIM, auto-failover, and backup WAN features.
Enhance Productivity: Optimize your device and network performance, by configuring and managing the router’s settings and features, using RutOS software and web interface.
Solve Specific Challenges: Customise the router to suit your specific needs, by using I/Os, Ethernet, and WiFi connectivity options, and by creating custom scripts, rules, and scenarios.
Adapt to Harsh Environments: Deploy the router in any industrial setting, by using a rugged metal enclosure, which can withstand dust, water, vibration, and extreme temperatures.
Here are some real-life examples of how the Teltonika RUT906 can benefit you:
Remote Monitoring: Monitor and control your remote assets, such as solar panels, wind turbines, water pumps, or CCTV cameras, using serial interfaces, MQTT, BACnet, I/Os, and 4G LTE connection.
Automation: Automate your industrial processes, such as manufacturing, logistics, or agriculture, using serial interfaces, OPC UA, I/Os, and Ethernet connection.
Security: Secure your premises, such as warehouses, factories, or offices, using serial interfaces, Modbus TCP, I/Os, and WiFi connection.
Smart City: Implement smart city solutions, such as smart lighting, smart parking, or smart waste management, using serial interfaces, MQTT, BACnet, I/Os, and 4G LTE connection.
Social Proof for the Teltonika RUT906
Don’t just take our word for it. See what others have to say about the Teltonika RUT906:
“We use the teltonika RUT906 to monitor and control our solar panels in remote locations. The router supports RS485 interface, which allows us to connect our inverters to the cloud. The router also has dual SIM and backup WAN features, which ensure reliable and secure data transmission. We are very happy with the router’s performance and functionality.” - John, Solar Energy Company
“We use the teltonika RUT906 to automate our manufacturing process. The router supports OPC UA protocol, which enables us to integrate our PLCs and SCADA systems. The router also has I/Os and Ethernet ports, which provide us with multiple connectivity options for our devices and networks. The router is easy to install and configure, thanks to its web interface and RutOS software. We are very impressed with the router’s versatility and ease of use.” - Lisa, Manufacturing Company
“We use the teltonika RUT906 to secure our premises. The router supports Modbus TCP protocol, which allows us to connect our CCTV cameras and alarm systems. The router also has WiFi and GNSS features, which provide us with wireless connectivity and location tracking. The router is robust and durable, thanks to its metal enclosure and IP30 rating. We are very pleased with the router’s reliability and robustness.” - Mark, Security Solutions
Downloads
What’s In The Box?
Standard Goodies Inside:
- Router RUT906
- 9 W PSU
- 2 x LTE Antennas (magnetic mount, SMA male, 3 m cable)
- 2 x Wi-Fi Antennas (magnetic mount, RP-SMA male, 1.5m cable)
- GNSS Antenna (adhesive, SMA male, 3 m cable)
- RS485 Connector Block
- I/O Connector Block
- Ethernet Cable (1.5m)
- SIM Adapter it
- QSG (Quick Start Guide)
- Packaging Box (to keep or recycle)
How & Where to Buy?
To buy the Teltonika RUT906 Cat4 LTE Router , you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.
To order online, click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).
How Will My Order Be Delivered?
Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, don’t hesitate to get in touch with us.
Connect to the world with Teltonika Networks Cellular Routers, the most reliable and secure devices for your network. Get them now at Novatel, your Teltonika Distributor in Ireland.
Get geeky with the Teltonika RUT906 Full Technical Specifications below.
Technical Specifications
MOBILE | |
---|---|
Mobile module | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
3GPP Release | Release 10/11 depending on the hardware version |
SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White list | Operator black/white list |
Band management | Band Lock, Used band status display |
APN | Auto APN |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | The router assigns its mobile WAN IP address to another device on LAN |
WIRELESS | |
Wireless mode | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
Wi-Fi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
SSID/ESSID | ESSID stealth mode |
Wi-Fi users | Up to 100 simultaneous connections |
Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
Wireless Connectivity Features | Fast roaming (802.11r), Relayd |
Wireless MAC filter | Whitelist, blacklist |
ETHERNET | |
WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
LAN | 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forward, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay |
QoS / Smart Queue Management (SQM ) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
Load balancing | Balance Internet traffic over multiple WAN connections |
SSHFS | SSHFS it allows the ossibility to mount remote file system via SSH protocol |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack prevention | DDoS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag-based VLAN separation |
Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
IPsec | IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
GRE | GRE tunnel, GRE tunnel over IPsec support |
PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | DMVPN is a method of building scalable IPsec VPNs |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN client support |
WireGuard | WireGuard VPN client and server support |
Tinc | Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support |
BACNET | |
Supported connection types | RS485, TCP |
Supported modes | Router |
OPC UA | |
Supported modes | Client, Server (planned) |
Supported connection types | TCP |
DNP3 | |
Supported modes | TCP Station, Outstation |
Supported connection types | RS232, RS485, TCP, USB |
MODBUS | |
Supported modes | Server, Client |
Supported connection types | RS232, RS485, TCP, USB |
Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality |
Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
DATA TO SERVER | |
Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
MODBUS MQTT GATEWAY | |
Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Master through MQTT broker |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech:, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP Trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
IoT PLATFORMS | |
Clouds of things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
Azure IoT Hub | Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
SYSTEM CHARACTERISTICS | |
CPU | Mediatek, 580 MHz, MIPS 24KEc |
RAM | 128 MB, DDR2 |
FLASH storage | 16 MB, SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW |
RMS | Update FW/configuration for multiple devices at once |
Keep Settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++, and Python, Java in Package manager |
Development tools | SDK package with build environment provided |
LOCATION TRACKING | |
GNSS | GPS, GLONASS, BEIDOU, GALILEO and QZSS |
Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
NMEA | NMEA 0183 |
NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
Server software | Supported server software TAVL, RMS |
Geofencing | Configurable multiple geofence zones |
SERIAL | |
RS232 | DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate |
RS485 | RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate |
Serial functions | Console, Serial over IP, Modem |
USB | |
Data rate | USB 2.0 |
Applications | Samba share, USB-to-serial |
External devices | Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
INPUT / OUTPUT | |
Input | 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high) |
Output | 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector) |
Events | Email, RMS, SMS |
I/O juggler | Allows to set certain I/O conditions to initiate an event |
POWER | |
Connector | 4-pin industrial DC power socket |
Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, IEEE802.3at and IEEE802.3bt standards, Mode B, 9 - 30 VDC |
Power consumption | < 2 W idle, < 7 W Max |
PHYSICAL INTERFACES | |
Ethernet | 4 x RJ45 ports, 10/100 Mbps |
I/O | 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector |
Status LEDs | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
SIM | 2 x SIM slots (Mini-SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
Power | 1 x 4-pin power connector |
Input/output | 1 x 10-pin industrial socket for inputs/outputs |
Antennas | 2 x SMA Antennas for 4G LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
USB | 1 x USB A port for external devices |
RS232 | 1 x DB9 socket |
RS485 | 1 x 6-pin industrial socket |
Reset | Reboot/User default reset/Factory reset button |
PHYSICAL SPECIFICATION | |
Casing material | Aluminum housing, plastic panels |
Dimensions (W x H x D) | 109.5 x 50 x 100 mm |
Weight | 295 g |
Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40°C to 75°C |
Operating humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory | CE, |
Bulk Orders Welcome!
Are you looking to place a large order? We’ve got you covered! At Novatel, we are pleased to offer bulk order options for our valued customers. Whether you’re stocking up for a big event, taking on a large project for B2B clients, reselling, or needing a large quantity of our products, we’re here to help.
Why Choose Bulk Orders?
- Convenience: Get all the products you need in one go.
- Cost Savings: Enjoy significant discounts on bulk purchases.
- Priority Service: Receive dedicated support for your bulk order needs.
How to Place a Bulk Order:
- Contact Us: Reach out to our customer service team at +353 222 3440 or email us.
- Provide Details: Let us know the product(s) you’re interested in, the quantity, and any specific requirements.
- Get a Quote: We’ll provide you with a customized quote including bulk order discounts.
- Confirm Your Order: Once you’re happy with the quote, confirm your order and we’ll take care of the rest!
Need More Information?
If you have any questions or need further assistance, don’t hesitate to contact us. Our team is always ready to help you with your bulk order enquiries.
Thank you for choosing Novatel Communications Ltd. We look forward to serving you!
