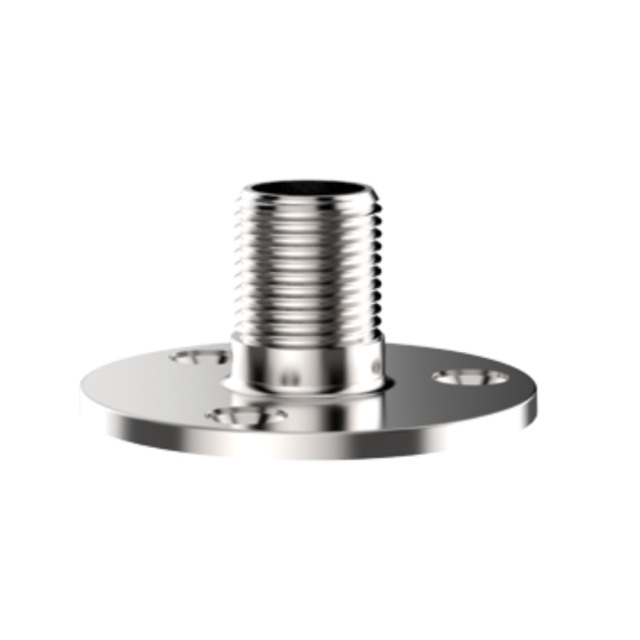

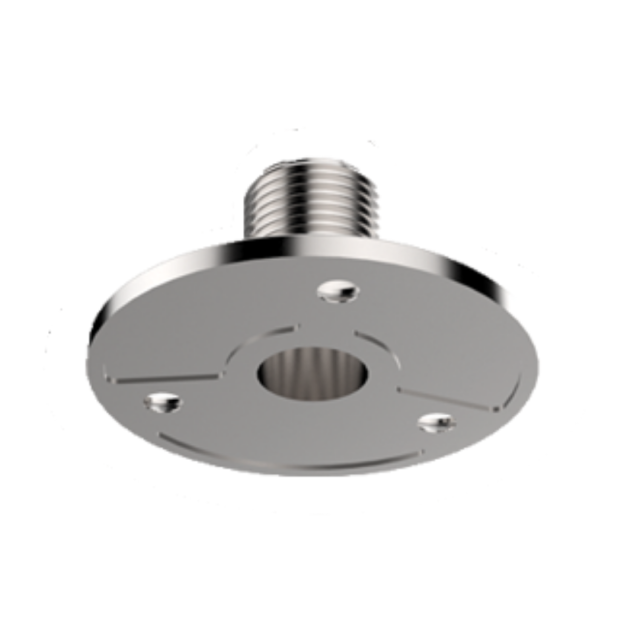

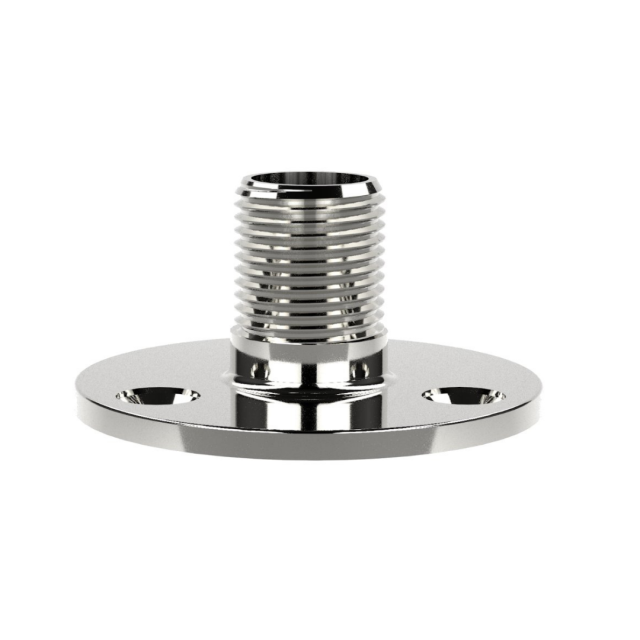

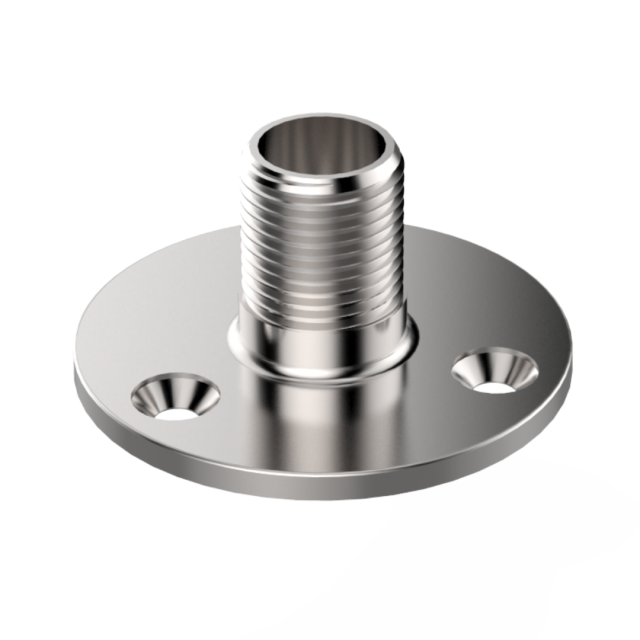

Poynting BRKT-037 Antenna Mounting Bracket

Back Order Poynting BRKT-037 Antenna Mounting Bracket

It’s a heavy duty flat mount marine antenna mounting bracket (1"-14T 316S/S) with rubber seal.

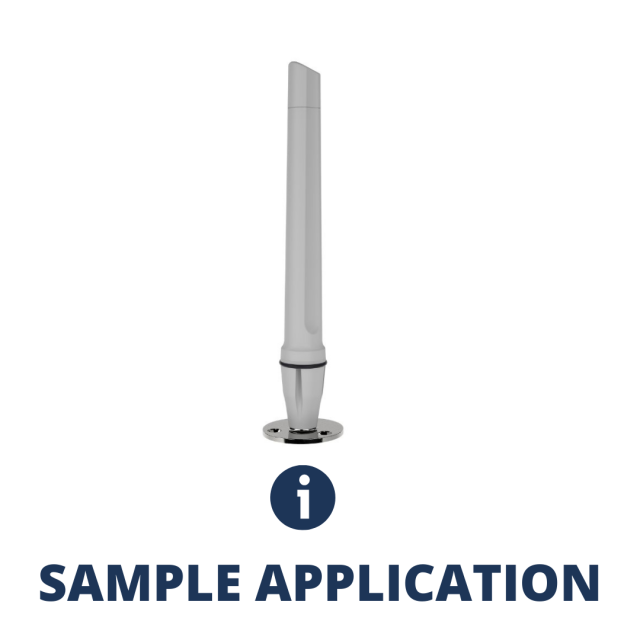

You can use this bracket to mount compatible Poynting Antenna models on a yacht, boat and other marine vessels:

  • OMNI-291
  • OMNI-400
  • OMNI-402
  • OMNI-403
  • OMNI-404
  • OMNI-496

Ordering Information

  • Commercial Name: BRKT-037-V2-01
  • Order Product Code: A-BRKT-037-V2-01
  • EAN Number: 6009880915743

Mechanical Specifications

  • Product Dimensions (D x H): Ø77 x 37.5mm
  • Packaged Dimensions: 150 x 120 x 120mm
  • Weight: 0.267kg
  • Packaged Weight: 0.297kg
  • Antenna mounting thread: Standard 1" x 14 threads; Ø56mm equally spaced
  • Mounting Hole: M6 countersunk
  • Material: 316 Grade stainless steel mount

Product Box Contents

  • Product: A-BRKT-037-V2-01
  • Mounting: Deck or side mounting

Certification Approvals and Standards

  • Flammability Rating: UL:1581
  • IK Code: IK08
  • Product Safety: Complies with CE and RoHS standards

How & Where to Buy?

To buy the Poynting BRKT-039 Antenna Mounting Bracke, you can pickup from our store (requires prior appointment due to COVID-19) located at Novatel Communications, 24 Main Street, Buttevant, Co. Cork, Ireland.

To purchase online, simply click on the Add to Cart button, and then go through the fast, easy and secure checkout process. Payment is provided for your convenience via Stripe Payment Gateway. You can use any card supported by it (MasterCard, Visa, American Express, Diners, and more…).

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are normally delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a tracking information for your order, after it is dispatched. If you have any questions on your order status, please contact us.

Write a review

Note: HTML is not translated!
    Bad           Good

  • Brand: Poynting
  • Product Code: A-BRKT-037-V2-01
  • Availability: Back Order
  • €36.89
  • Ex Tax: €29.99
