Poynting OMNI-402

Poynting OMNI-402
Poynting OMNI-402
Poynting OMNI-402
Poynting OMNI-402
€456.00
Ex Tax: €370.73
  • Stock: In Stock
  • Brand: Poynting
  • Model: OMNI-402
  • Weight: 1.76kg
  • Dimensions: 70.40cm x 14.70cm x 10.00cm
  • EAN: 707273470393
  • MPN: A-OMNI-0402-V1-01

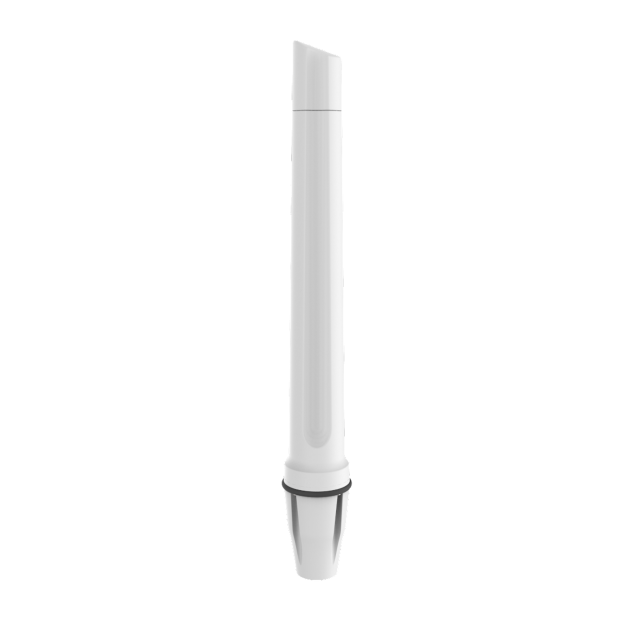

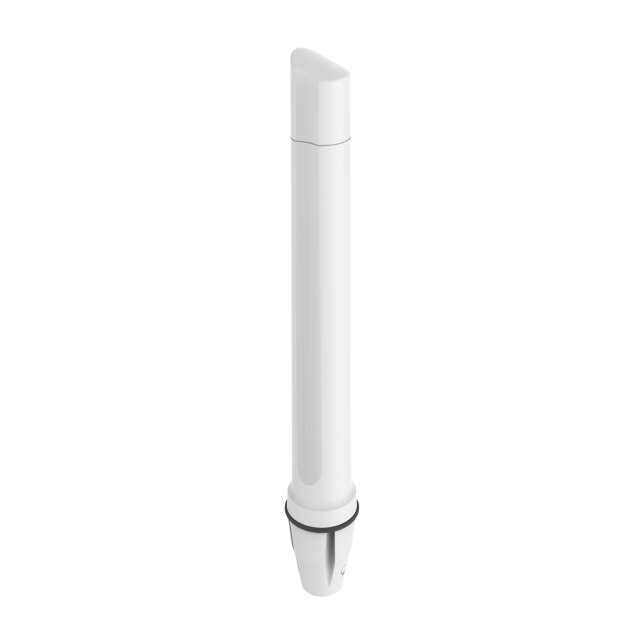

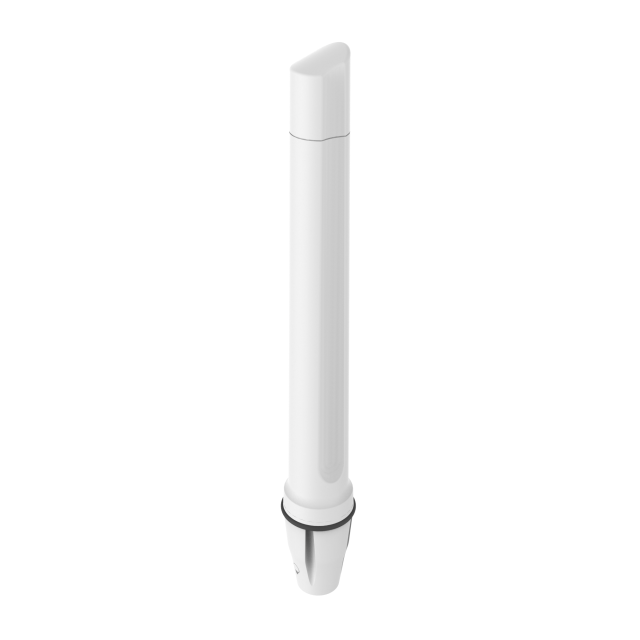

The Poynting OMNI 402 is a high-performance marine and coastal 2x2 MIMO Omni-directional Antenna, capable of operating under several known LTE frequencies, such as 800MHz, 1800MHz, and 2600MHz.

Not only that, it can also be used as WiFi Antenna for a 2.4GHz frequency band, and a GSM900 antenna for mobile devices.

It has a peak gain of 6.2dBi and can cover a wide array of frequency bands (410 MHz - 3800 MHz), which guarantees signal reception from almost everywhere.

The antenna is future-proof, as it covers the 450MHz LTE frequency band which is becoming more popular in various countries and continents. It is also 3300–3800 MHz capable, which is best used for coastal and inland use.

For more info, you can read the technical specification table below.

Quick Features

Reference Image: OMNI-402 Marine Antenna Features
  • 2x2 MIMO marine quality high-performance omnidirectional antenna
  • Easy mounting with feed through a 1-inch marine standard adapter bracket (included)
  • Various optional mounting brackets to choose from
  • Robust all-weather condition protection (UV, salt water, harsh conditions protected)
  • Ingress protection against dust and water (IP68)
  • 5G-Ready

Application Areas

Here are some applications where you can use and take advantage of OMNI-402's features.

  • Marine applications: Yachts, Boats, Ferries
  • Passively Boosts LTE Signal Reception
  • Internet-of-Things Devices Connectivity and Machine-to-Machine Applications
  • Improves Signal Reception for GSM, Wifi or 3G Data signal
  • Improves data transmission connection reliability & stability

Technical Specification

Electrical Specifications
Frequency Bands 410-470 MHz
690-960 MHz
1710-2170 MHz
2300-2700 MHz
3300-3800 MHz
Gain (max) Port 1 & 2 6.2 dBi
VSWR Port 1 & 2 ≤ 2.5:1 across 92% of the band
Feed Power Handling 10 W
Input Impedance 50 Ohm (nominal)
Polarisation Linear Vertical
Coax Cable Loss 0.36 dB/m @ 900 MHz
0.48 dB/m @ 1500 MHz
0.51 dB/m @ 1800 MHz
0.53 dB/m @ 2400 MHz
0.60 dB/m @ 3000 MHz
DC Short Yes
Mechanical Specifications
Product dimensions 750 mm x 75 mm (Incl. BRKT-40)
Packaged Dimensions 704 mm x 147 mm x 100 mm
Weight
Packaged Weight
Radome Material UV Stable SAN Marine ASA
Radome Colour Brilliant White
Pantone P 179-1 C
Mounting Type Standard 1'' -14 TPI marine mount
& Wall/Pole mount
Environmental Specifications, Certification & Approvals
Wind Survival <160 km/h
Temperature Range (Operating) -40°C to +80°C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection Ratio/Standard IP68
Salt Spray MIL-STD 810F/ASTM B117
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - non-condensing
Storage Temperature -40°C to +80°C
Enclosure Flammability Rating UL 94-HB
Impact Resistance IK08
Product Safety & Environmental Complies with CE and RoHS
Coax Cable & Connector Type
Cable Length 2m
Coax Cable Type Twin Siamese HDF 195
Connector Type 2 x SMA Male
(NOTE: The coax cable and connector are factory mounted to the antenna)

Package Content

Package content includes the following:

  • The OMNI-402 Antenna (A-OMNI-0402)
  • Mounting bracket: Marine Adapter (1'' -14 TPI) & L-bracket (Ø30-50mm Pole)

Mounting Options

Reference Image: Mounting Options
Optional Pole or Marine Bracket Mount
  • Pole Mount Option: L-Bracket 316 Stainless Steel – included (for Ø 30-50mm pole)
  • Marine Bracket Mount: 1” -14 TPI female adapter – included Mounts to standard marine brackets; BRKT-37 Flat Mount (Optional), BRKT-38 Ratchet Mount (Optional), BRKT-39 Rail Mount (Optional)

Optional Mounting Brackets

Reference Image: Mounting Brackets
Optional Pole or Marine Bracket Mount
  • BRKT-37
  • BRKT-38
  • BRKT-39

Performance Plot

Reference Image: Performance Plot

How & Where to Buy?

To buy the Poynting OMNI-402 Marine Omni-directional Antenna, you can drop by our store (by appointment only) located at Novatel Communications, 12 Main Street, Buttevant, Co. Cork P51 K066.

To purchase online, simply click on the Add to Cart button, and then go through the fast, easy and secure checkout process. Payment is provided for your convenience via Stripe Payment Gateway. You can use any card supported by it (MasterCard, Visa, American Express, Diners, and more...).

Ordering Information

SKU A-OMNI-0402-V1-01
EAN 707273470393
HS Code #85291069
Packaged Weight 1.76kg
Packaged Dimensions 704 x 147x 100 mm
Master Box QTY 10
Master Box Weight 18.5kg
Master Box Dimensions 350 x 560 x 770 mm
