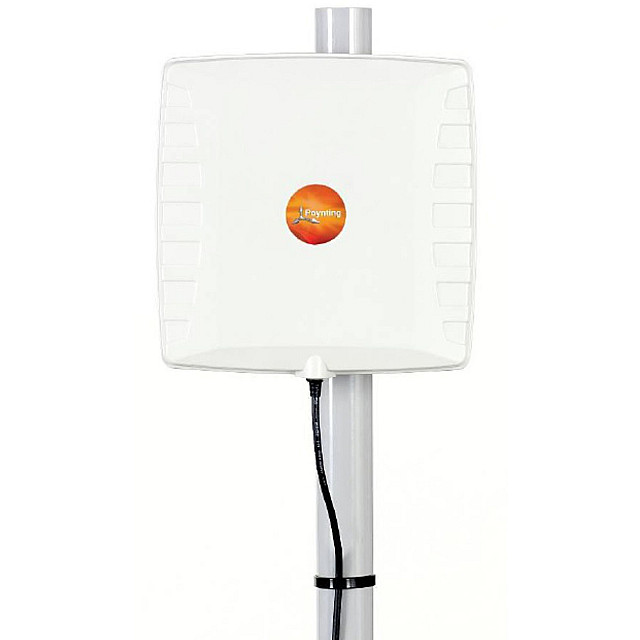

Poynting Patch-26: Linear RFID LTE/GSM Antenna

Poynting Patch-26: Linear RFID LTE/GSM Antenna
New Hot

Available to Order

Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.

€144.00
Ex Tax: €117.07
  • Stock: Delivery Lead Time: 7-10 Days
  • Brand: Poynting
  • Model: PATCH-26
  • Weight: 0.75kg
  • Dimensions: 33.50cm x 25.00cm x 9.50cm
  • EAN: 6009693810020
  • MPN: A-PATCH-0026

This Poynting Antenna covers the 900 MHz band and can work on GSM and 800MHz LTE frequency band. The antenna has been designed to be water resistant and is easy to install. It is unique in the RFID environment because of its VSWR & gain specifications.

PATCH-26 Application Areas

  • Areas of poor GSM-800 and GSM-900 coverage
  • Rural and urban environments
  • RFID reader applications
  • Indoor GSM applications

PATCH-26 Features

  • Robust Design
  • Wideband antenna
  • Linear polarised
  • Vandal and water resistant
  • Meets the stringent electrical requirements for RFID applications

PATCH-26 Technical Specification

See below table for PATCH-26s' technical specification.

Electrical Specifications
Frequency Bands 820 - 970 MHz
Gain (Max) 8 dBi
VSWR @ 820 - 970 MHz < 1.4:1 over 80% of the band
Feed Power Handling 10 W
Input Impedance 50 Ohm (nominal)
Polarisation Linear
Cable Loss 0.85dB/m @ 900 MHz
DC Short Yes
Mechanical Specifications
Product Dimensions (L x W x D) 250 x 250 x 40mm
Packaged Dimensions 335 x 250 x 95mm
Weight 0.57 kg
Packaged Weight 0.83 kg
Radome Material ABS (Halogen Free)
Radome Colour Pantone - Cool Gray (1C)
RAL – 7047
Environmental Specifications
Wind Survival <160km/h
Temperature Range (Operating) -20°C to +70°C
Environmental Conditions Outdoor/Indoor
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - non condensing
Storage Temperature -20°C to +70°C
Certification Approvals and Standards
Flammability Rating UL 94-V1
EN 13823
Water Ingress Protection Ratio/Standard IP 65 (NEMA 4X)
Impact Resistance IK 08
Salt Spray MIL-STD 810F /ASTM B117
Product Safety & Certifications Complies with UL, CE, EN, CSA and IEC standards

Downloads

Ordering Information

SKU A-PATCH-0026
EAN 6009693810020
HS Code #85291069
Packaged Weight 0.75kg
Packaged Dimensions 335 x 250 x 95 mm
Master Box QTY 10
Master Box Weight 12.93kg
Master Box Dimensions 530 x 362 x 505 mm
