Teltonika TRB140: 4G/LTE Cat 4 Energy-efficient IoT Gateway for Industrial Use with VPN Capability
Fast Delivery via DPD
€138.00
Ex Tax: €112.20
- Stock: In Stock
- Brand: Teltonika
- Model: TRB140
- Weight: 429.00g
- Dimensions: 148.00mm x 173.00mm x 71.00mm
- MPN: TRB140
Highly Recommended Addons
If you’re looking for a simple, reliable, and affordable way to connect your devices to the internet, look no further than TRB140. This compact and powerful network gateway is designed to handle any challenge you throw at it.
With TRB140, you can:
- Bridge or Passthrough Mode
- Band Locking and Auto APN for Mobile Network Profiles
- Manage and monitor your network remotely with Teltonika RMS
- Enjoy fast and secure 4G LTE connectivity with a built-in SIM card slot
- VPN Protocol Support: ZeroTier, Wireguard, IPsec, Gre, Stunnel, DMVPN, SSTP, and OpenVPN
Whether you need a network gateway for your home, office, or industrial site, TRB140 has you covered. Order yours today and discover the difference TRB140 can make for your network!
Technical Specifications
Read further below to learn more about the full technical specifications of the TRB140 Gateway.
| MOBILE | |
|---|---|
| Mobile Module |
4G (LTE) – Cat 4 up to 150 Mbps 3G – Up to 42 Mbps 2G – Up to 236.8 kbps |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
| SMS/Call | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list |
| Band management | Band Lock, Used band status display |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Gateway assigns its mobile WAN IP address to another device on LAN |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| ETHERNET | |
| LAN | 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| NETWORK | |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
| Routing | Static routing |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation |
| QoS / Smart Queue Management (SQM) (planned) | Traffic priority queuing by source/destination, service, protocol or port |
| DDNS | Supports >25 DDNS service providers, others can be configured manually |
| SSHFS | SSHFS makes it possible to mount remote file systems via SSH protocol |
| SECURITY | |
| Authentication | The pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via the WebUI, and unlimited firewall configuration via CLI; NAT; NAT-T |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| Mobile Quota Control | Set up custom data limits for SIM card |
| WEB Filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access Control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, and 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| WireGuard | WireGuard VPN client and server support |
| ZeroTier | ZeroTier VPN |
| IPsec | IKEv1, and IKEv2, support up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server services can run simultaneously, and L2TPv3 support |
| MODBUS TCP MASTER | |
| Supported Functions | 01, 02, 03, 04, 05, 06, 15, 16 |
| Supported Data Formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| MODBUS TCP SLAVE | |
| ID filtering | Respond to one ID in the range [1;255] or any |
| Allow Remote Access | Allow access through WAN |
| Custom Registers | MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
| MQTT GATEWAY | |
| Gateway | Allows sending commands and receiving data from MODBUS Master through MQTT broker |
| DATA TO SERVER | |
| Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
| MONITORING & MANAGEMENT | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, system log, kernel log |
| FOTA | Firmware update from sever, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| IoT PLATFORMS | |
| Cloud of Things | Allows monitoring of Device data, Mobile data, Network info, Availability |
| ThingWorx | Allows monitoring of WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity | Allows monitoring of Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type, and IP |
| Azure IoT Hub | Can send device IP, Number of bytes sent/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
| SYSTEM CHARACTERISTICS | |
| CPU | ARM Cortex-A7 1.2 GHz CPU |
| RAM | 128 MB (50 MB available for userspace) |
| FLASH storage | 512 MB (200 MB available for userspace) |
| FIRMWARE / CONFIGURATION | |
| WEB UI | Update FW from a file, check FW on the server, configuration profiles, configuration backup |
| FOTA | Update FW/configuration from the server |
| RMS | Update FW/configuration for multiple devices |
| Keep settings | Update FW without losing the current configuration |
| FIRMWARE CUSTOMIZATION | |
| Operating System | RutOS (OpenWrt-based Linux OS) |
| Supported Languages | Busybox shell, Lua, C, C++ |
| Development Tools | SDK package with build environment provided |
| INPUT/OUTPUT | |
| Configurable I/O | 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA (not available in TRB1402***) |
| Output Control | HTTP POST/GET, Schedule |
| Events | SMS, EMAIL |
| I/O Juggler | Allows to set certain I/O conditions to initiate an event |
| POWER | |
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9 – 30 VDC (4-pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards |
| Power Consumption | < 5 W |

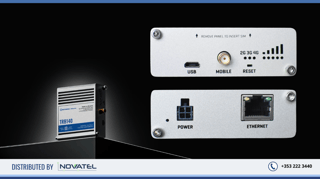

| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Ethernet | 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| I/Os | 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB1402***) |
| USB | 1 x Virtual network interface via micro USB |
| Status LEDs | 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x 4-pin DC connector |
| Antenna | 1 x SMA for LTE |
| Reset | Reboot/User default reset/Factory reset button |
| PHYSICAL SPECIFICATION | |
| Casing Material | Aluminum housing |
| Dimensions (W x H x D) | 74.5 x 25 x 64.4 mm |
| Weight | 134 g |
| Mounting Options | Bottom and sideways DIN rail, Flat surface |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
| REGULATORY & TYPE APPROVALS | |
| Regulatory | CE/RED, EAC, RoHS, WEEE |
| EMI | |
| Standards | Draft ETSI EN 301 489-1 V2.2.0, Draft ETSI EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
| ESD | EN 61000-4-2:2009 |
| RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 |
| EFT | EN 61000-4-4:2012 |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 |
| Surge protection | EN 61000-4-5:2014 |
| RF | |
| Standards | EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
| SAFETY | |
| Standards |
IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |
