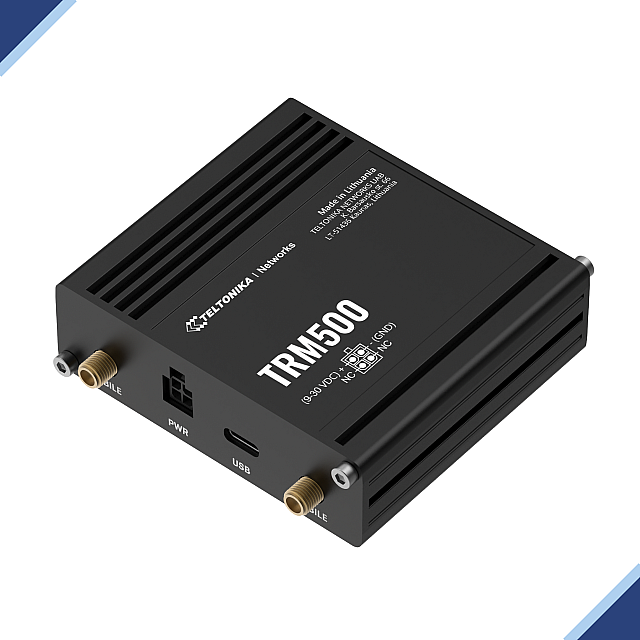

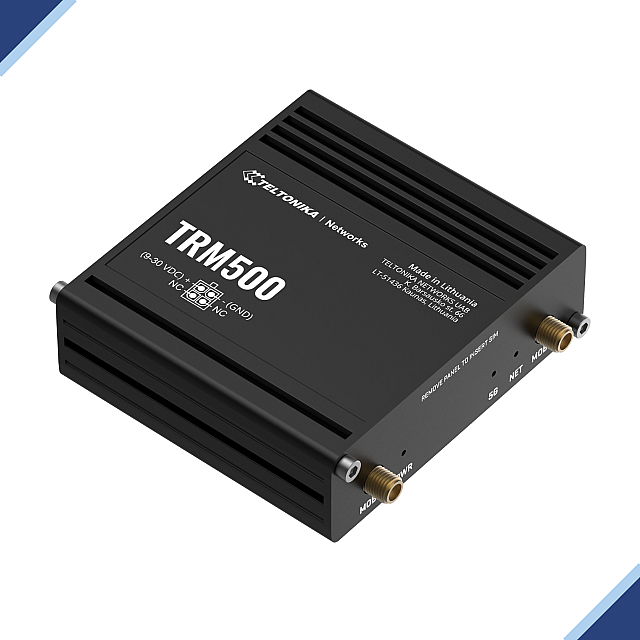

Teltonika TRM500 Industrial 5G Modem With USB TYPE-C

Teltonika TRM500 Industrial 5G Modem With USB TYPE-C
Teltonika TRM500 Industrial 5G Modem With USB TYPE-C
Teltonika TRM500 Industrial 5G Modem With USB TYPE-C
€4.88 Local IE Flat Rate Shipping (€6 w/ VAT)
€394.00
Ex Tax: €320.33
  • Stock: In Stock
  • Brand: Teltonika Networks
  • Model: TRM500
  • Weight: 256.00g
  • Dimensions: 148.00mm x 173.00mm x 71.00mm
  • MPN: TRM500

Unlock the Future of Connectivity with the Teltonika TRM500!

The Teltonika TRM500 is a cutting-edge industrial-grade modem designed to keep you connected with the latest 5G, 4G, and 3G networks. Whether you’re managing a remote site, deploying IoT solutions, or ensuring seamless communication in harsh environments, the TRM500 is your ultimate connectivity solution.

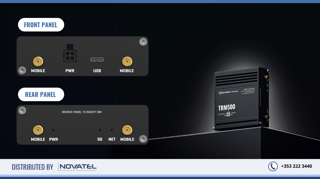

Rear and Front Panel of the TRB500 5G Modem. On the front panel, you'll see the 4-pin input power connector, usb type-c input, and two SMA input port for External 5G Antenna. On the Rerar View, you'll see the 2nd set of SMA input port, LED indicator for; power, 5G status, and LAN network status
Reference Image: The 5G Modem’s Rear and Front Panel Views.

Key Features

Each feature of the Teltonika TRM500 is meticulously designed to solve connectivity challenges, providing you with a robust and reliable communication solution.

  • External Antenna Connector: Enhance your signal strength and coverage with ease.
  • Rugged Design: Built to withstand extreme conditions, ensuring durability and longevity.
  • Easy Integration: Compatible with a wide range of devices and systems for seamless deployment.
  • High Data Throughput: Experience lightning-fast data transfer speeds for all your applications.
  • 5G, 4G, and 3G Network Support: Stay ahead with the fastest and most reliable network options available.

How & Where to Buy?

Don’t miss out on the future of connectivity! Order your modem today and experience the difference. Limited stock available – act now to secure your unit!

To buy the Teltonika TRM500 5G Modem With a TYPE-C USB Port, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.

To order online, click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, don’t hesitate to get in touch with us.

Elevate your connectivity with the Teltonika TRM500 – the future is now!


Stay Connected with Teltonika Networks Cellular Modems

Experience unparalleled reliability and security with Teltonika Networks Cellular Modems. Ensure your network’s performance with the most trusted devices on the market. Available now at Novatel, your official Teltonika Distributor in Ireland.

Write a review

Please login or register to review

Get geeky with the Teltonika TRM500 Full Technical Specifications below.

Technical Specification

MOBILE
Mobile Module 5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4x4 MIMO)/ 550 Mbps UL (2x2)
4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL
3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release Release 16
POWER
Connector 1 x 4-pin industrial DC power socket
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Input Voltage Range 4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max
USB Type-C: 5 VDC
Power Consumption Idle: < 5 W, Max: < 12 W
PHYSICAL INTERFACES
Status LEDs 1 x Power LED, 1 x 5G LED, 1 x Network LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin power connector
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Antennas 4 x SMA for Mobile
Reset Reboot/User default reset/Factory reset button
Other 1 x Virtual network interface via USB Type-C (For power and network data)
PHYSICAL SPECIFICATION
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 83 x 25 x 85.4 mm
Weight 94.5 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
Operating Temperature -40°C to 75°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
TRM SOFTWARE
Management Software Windows Connection Manager, Modem Manager (Linux)
USB Serial Driver Windows 7/8/8.1/10/11, Linux 2.6~6.3, Android 4.x ~ 13
GNSS Driver Android 4.x ~ 13
RIL Driver Android 4.x ~ 13
NDIS Driver Windows 7/8/8.1/10/11
MBIM Driver Windows 8/8.1/10/11, Linux 3.18~6.3
Gobinet Driver Linux 2.6/3.x/4.1~4.14
QMI_WWAN Driver Linux 3.4~6.3
REGULATORY & TYPE APPROVALS
Regulatory WEEE
EMC EMISSIONS & IMMUNITY
Standards EN 55032:2015+A1:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-52 V1.2.1
AS/NZS CISPR 32:2015+A1:2020
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014+A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2020
RF
Standards EN 301 908-1 V15.2.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.2.1
EN 301 908-25 V15.1.1
AS/CA S042.1:2022
AS/CA S042.4:2022
AS/CA S042.5:2022+A1:2022
FCC Part 22
SAFETY
Standards EN IEC 62311:2020
EN IEC 62368-1:2018
CLASSIFICATION CODES
HS Code 851762
HTS 8517.62.00
MAIN MEASUREMENTS
Device Housing 83 x 25 x 85.4 mm (W x H x D)
Box 355 x 60 x 175 mm (W x H x D)
