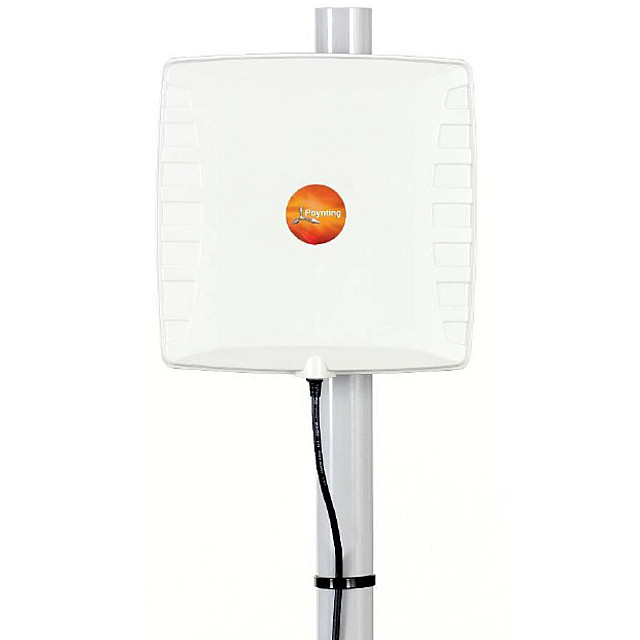

Poynting Patch-25 - Circular RFID LTE/GSM Antenna

The Poynting PATCH-25 is an 8.75dBi RFID outdoor antenna that works on 860-960 MHz frequency bands. It supports GSM-900MHz and the 800MHz 4G LTE networks. This antenna covers both EU and USA RFID bands, designed and manufactured under EU standards. It is designed to resist water, all-weatherproof and is easy to install.

It is circularly polarised for reading in any orientation and so can be used to improve indoor GSM coverage. VSWR is typically less than 1.3:1, giving a return loss better than 20dB.

This antenna is unique in the RFID environment because of its VSWR & gain specifications.

Thanks to its VSWR & gain specifications, this antenna is unique in the RFID environment.

PATCH-25 VS PATCH-26

These two models are almost the same, only the polarisation is different.

Features

• Robust Design
• Wideband Antenna
• 8.75 dBi Max Gain
• Vandal and water resistant
• Circular (Patch-25) and Linear (Patch-26) Polarised
• Meets the stringent electrical requirements for RFID applications

Applications

Can be used in the following areas:

• Areas of poor GSM-800 and GSM-900 coverage
• Rural and urban environments
• RFID reader applications
• Indoor GSM applications
• Operator agnostic

Technical Specification

Read below data table for Poynting's Patch-25 technical specification.

Electrical Specifications
Frequency Bands	860 - 960 MHz
Gain (Max)	8.75 dBi
VSWR @ 860 - 935 MHz	< 1.3:1
VSWR @ 935 - 960 MHz	< 1.7:1
Feed Power Handling	10 W
Input Impedance	50 Ohm (nominal)
Polarisation	Circular (Right Hand Circular Polarised)
Cable Loss	0.85dB/m @ 900 MHz
DC Short	Yes
Mechanical Specifications
Product Dimensions (L x W x D)	250 x 250 x 40mm
Packaged Dimensions	335 x 250 x 95mm
Weight	0.57 kg
Packaged Weight	0.83 kg
Radome Material	ABS (Halogen Free)
Radome Colour	Pantone - Cool Gray (1C) RAL – 7047
Environmental Specifications
Wind Survival	<160km/h
Temperature Range (Operating)	-20°C to +70°C
Environmental Conditions	Outdoor/Indoor
Operating Relative Humidity	Up to 98%
Storage Humidity	5% to 95% - non condensing
Storage Temperature	-20°C to +70°C
Certification Approvals and Standards
Flammability Rating	UL 94-V1 EN 13823
Water Ingress Protection Ratio/Standard	IP 65 (NEMA 4X)
Impact Resistance	IK 08
Salt Spray	MIL-STD 810F /ASTM B117
Product Safety	Complies with UL, CE, EN, CSA and IEC standards

Product Box Contents

Box content includes the following:

• Antenna: A-PATCH-0025-V2
• Mounting Bracket: N/A
• Cable Length: 0.3m ±5%
• Cable Type: HDF 195
• Connector: N-Type Female (The conntector is factory mounted to the antenna)

Ordering Information

• Commercial name: PATCH-25
• Order Product Code: A-PATCH-0025-V2
• EAN number: 6009693810259
