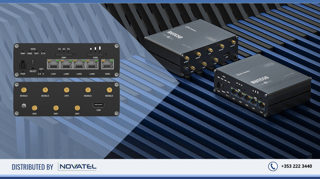

Teltonika RUTC50: Dual SIM 5G Router with Dual-band Wi-Fi 6 Capability
- Stock: In Stock
- Brand: Teltonika Networks
- Model: RUTC50
- Weight: 452.00g
- Dimensions: 355.00mm x 60.00mm x 175.00mm
- MPN: RUTC50
Available Options
Included in the Price of this Product is the WEEE Recycling Charge.
Dive into the realm of unmatched connectivity with the Teltonika RUTC50, the industrial cellular router that’s redefining reliability and speed. Engineered for the professionals who won’t settle for less than the best, the RUTC50 is the ultimate solution for industrial automation, remote monitoring, and smart city applications. With Novatel Communications Ltd. as your trusted provider, you’re not just purchasing a router; you’re upgrading to a seamless, secure, and robust network designed to tackle the challenges of modern industrial networking head-on.
Key Features
Experience lightning-fast data transfer rates with 5G (up to 3.4 Gbps), ensure constant connectivity with dual SIM auto-failover, and enjoy the flexibility of multiple Ethernet ports for all your devices.
Here are the key features that make the RUTC50 an indispensable tool for any demanding environment:
- 5 Gigabit Ethernet ports
- Dual Band Wi-Fi 6 (b/g/n/ac/ax)
- Rugged industrial design with DIN rail mounting
- Dual SIM with auto-failover for uninterrupted service
- WAN Bonding Capable through Bondix S.A.NE Bonding Software (sold separately)
- High-speed 5G (up to 3.4 Gbps) - backward compatible with 4G (Cat 20) and 3G
What’s In The Box?
Standard Goodies Inside:
- The RUTC50 Router Unit
- 24W Power Supply Unit
- 4 x 5G Mobile antennas (swivel, SMA male)
- 3 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3m cable)
- Ethernet cable (1.5m)
- SIM Adapter Iit
- QSG (Quick Start Guide)
- Packaging box, to keep or recycle
Downloads
- Download Technical Specification (PDF)
- Download the Latest Firmware
- Quick Start Guide: EN (Web Page)
- User Manual: EN (Web Page)
How & Where to Buy?
To buy the Teltonika RUTC50 5G/4G Dual-band Wi-Fi 6 Router, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.
To order online, click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).
How Will My Order Be Delivered?
Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, don’t hesitate to get in touch with us.
Connect to the world with Teltonika Networks Cellular Routers, the most reliable and secure devices for your network. Get them now at Novatel, your Teltonika Distributor in Ireland.
Get geeky with the RUTC50 tech specs table below.
MOBILE | |
---|---|
Mobile Module | 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 210Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
3GPP Release | Release 16 |
SIM Switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, , EARFCN |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White List | Operator black/white list (by country or separate operators) |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Frequency Band Management | Band Lock, Used band status display |
SIM Idle Protection Service | When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then |
APN | Auto APN |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
Framed Routing | Framed routing: support an IP network behind 5G UE |
WIRELESS | |
Wireless Mode | 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO) |
Wi-Fi Security | WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect |
SSID/ESSID | ESSID stealth mode |
Wi-Fi Users | Up to 512 simultaneous connections |
Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k) |
Wireless MAC Filter | Whitelist, blacklist |
Wireless QR Code Generator | Once scanned, a user will automatically enter your network without needing to input login information |
ETHERNET | |
WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forward, traffic rules, custom rules |
Firewall Status Page | View all your Firewall statistics, rules, and rule counters |
Ports Management | View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on |
Network Topology | Visual representation of your network, showing which devices are connected to which other devices |
DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
Load Balancing | Balance Internet traffic over multiple WAN connections |
Hotspot | Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes |
SSHFS | SSHFS enables you to mount remote file system via SSH protocol |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 Certificates, TACACS+, RADIUS, IP & login attempts block, time-based login blocking, built-in random password generator |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack Prevention | DDoS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag-based VLAN separation |
Mobile Quota Control | Mobile data limit, customizable period, start time, warning limit, phone number |
WEB Filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access Control | Flexible access control of SSH, Web interface, CLI and Telnet |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
IPsec | IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
GRE | GRE tunnel, GRE tunnel over IPsec support |
PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | Method of building scalable IPsec VPNs |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN client support |
WireGuard | WireGuard VPN client and server support |
Tinc | Tinc offers encryption, authentication and compression in it's tunnels. Client and server support |
Tailscale | Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protoco |
OPC UA | |
Supported Modes | Client, Server |
Supported Connection Types | TCP |
MODBUS | |
Supported Modes | Server, Client |
Supported Connection Types | TCP, USB |
Custom Registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality |
Supported Data Formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
DATA TO SERVER | |
Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
Data to Server | Extract parameters from multiple sources and different protocols, and send them all to a single server |
MQTT GATEWAY | |
Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
DNP3 | |
Supported Modes | Station, Outstation |
Supported Connection | TCP |
DLMS | |
DLMS Support | DLMS - standard protocol for utility meter data exchange |
Supported Modes | Client |
Supported Connection Types | TCP, USB |
API | |
Teltonika Networks Web API (beta) support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
Receive email message status alerts of various services | |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech:, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP Trap |
JSON-RPC | Management API over HTTP/HTTPS |
RMS | Teltonika Remote Management System (RMS) |
IOT PLATFORMS | |
Cloud of Things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
Azure IoT Hub | Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
SYSTEM CHARACTERISTICS | |
CPU | Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53 |
RAM | 512MB DDR3 |
FLASH Storage | 16MB serial NOR flash, 512MB serial NAND flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW |
RMS | Update FW/configuration for multiple devices at once |
Keep Settings | Update FW without losing current configuration |
Factory Settings Reset | A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration |
FIRMWARE CUSTOMISATION | |
Operating System | RutOS (OpenWrt based Linux OS) |
Supported Languages | Busybox shell, Lua, C, C++ |
Development Tools | SDK package with build environment provided |
GPL Customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs |
LOCATION TRACKING | |
GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
NMEA | NMEA 0183 |
NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
Server Software | Supported server software TAVL, RMS |
Geofencing | Configurable multiple geofence zones |
USB | |
Data Rate | USB 2.0 |
Applications | Samba share, USB-to-serial |
External Devices | Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
Storage Formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
INPUT / OUTPUT | |
Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high |
Output | 1 x Digital Output, Open collector output, max output 50 V, 300 mA |
Events | Email, RMS, SMS |
I/O juggler | Allows to set certain I/O conditions to initiate event |
POWER | |
Connector | 4-pin industrial DC power socket |
Input Voltage Range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
PoE (passive) | Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
Power Consumption | Idle: < 4.5 W, Max: < 13.5 W |
PHYSICAL INTERFACES | |
Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
Status LEDs | 4 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi, 2 x WAN status |
SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
Power | 1 x 4-pin power connector |
Antennas | 4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
USB | 1 x USB A port for external devices |
Reset | Reboot/User default reset/Factory reset button |
Other | 1 x Grounding screw |
PHYSICAL SPECIFICATION | |
Casing Material | Anodized aluminum housing and panels |
Dimensions (W x H x D) | 130.4 x 42.6 x 103.4 mm |
Weight | 452 g |
Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
OPERATING ENVIRONMENT | |
Operating Temperature | -40 °C to 75 °C |
Operating Humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
