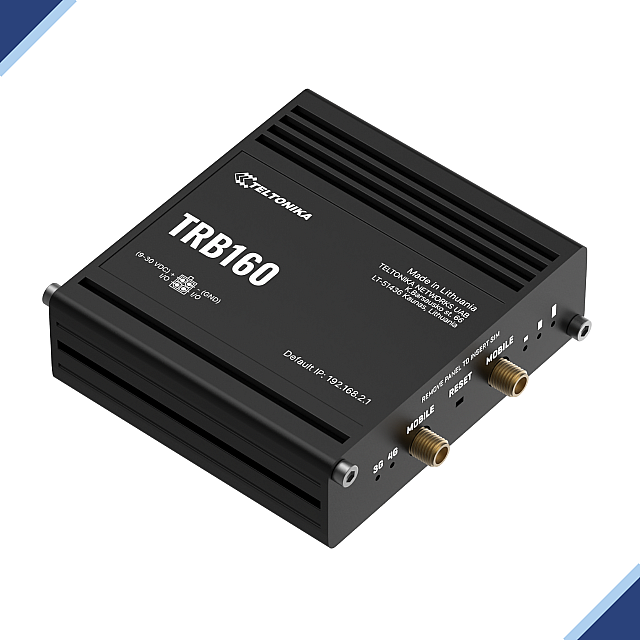

Teltonika TRB160: 4G LTE CAT 6 IoT Gateway with USB TYPE-C Port

Teltonika TRB160: 4G LTE CAT 6 IoT Gateway with USB TYPE-C Port
Teltonika TRB160: 4G LTE CAT 6 IoT Gateway with USB TYPE-C Port
Teltonika TRB160: 4G LTE CAT 6 IoT Gateway with USB TYPE-C Port
€4.88 Local IE Flat Rate Shipping (€6 w/ VAT)

Available to Order

Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.

Based on 0 reviews. - Write a review
€194.00
Ex Tax: €157.72
  • Stock: Delivery Lead Time: 7-10 Days
  • Brand: Teltonika Networks
  • Model: TRB160
  • Weight: 172.00g
  • Dimensions: 173.00mm x 71.00mm x 148.00mm
  • MPN: TRB160
Add to Cart
Send Us An Order Ask Question
Add to Wish List
WEEE Recycling Charge

Included in the Price of this Product is the WEEE Recycling Charge.

More Antennas Here

Step into the future of industrial connectivity with the Teltonika TRB160 — a compact, high-speed (Cat 6) 4G (LTE) gateway engineered to transform your data exchange and machine-to-machine communications. This powerhouse device is tailored for the industrious professional, delivering a robust solution to the pressing demand for consistent, high-speed connectivity in challenging environments. With the TRB160, operational efficiency is no longer a goal; it’s a guarantee, ensuring that your enterprise thrives with uninterrupted communication at the helm.

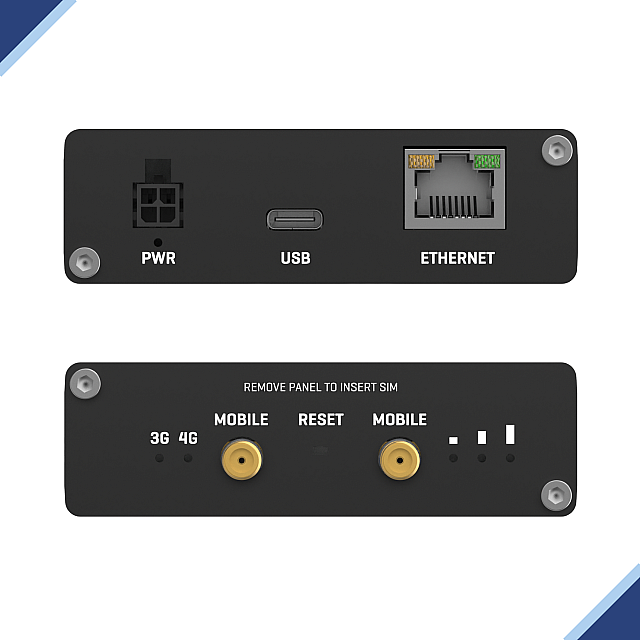

The Front and Rear Panel Views of the TRB160 4G LTE IoT Gateway
Reference Image: The Front and Rear Panel Views of the TRB160 4G LTE IoT Gateway. On the front panel, you see a single ethernet port, USB-C, and the power input port.

Key Features

As we delve into the heart of the Teltonika TRB160, let’s explore the innovative features that stand at the core of its exceptional performance. Each function is a testament to Teltonika’s commitment to quality and precision, crafted to meet the rigorous demands of industrial communication.

Read on to discover how these key features can elevate your operational capabilities to new heights.

  • LTE CAT 6: Enjoy cellular speeds up to 300 Mbps with carrier aggregation for rapid data transfer.
  • USB Type-C: Power your gateway and manage network data simultaneously with cutting-edge connectivity.
  • Industrial Protocols Support: Seamlessly integrates with OPC UA, Modbus, MQTT, and more, for efficient M2M communication.
  • RutOS Software: Equipped with advanced networking solutions, the TRB160 ensures your network is smart, secure, and easily manageable.
  • Carrier Aggregation: This feature propels the TRB160 to the forefront of gateway technology, offering speeds that redefine industry standards.

Benefits

The TRB160 offers both direct and indirect benefits, such as:

  • Versatility: Its compact size and robust protocol support make it ideal for a variety of industrial applications
  • Speed and Reliability: Accelerate your operations with fast data transfer rates, ensuring that your systems are always in sync

What’s in the Box?

Standard Goodies Inside:

  • The TRB160 Unit
  • 9 W Power Supply Unit (PSU)
  • 2 x Mobile antenna (magnetic mount, SMA male, 3 m cable)
  • USB Type-C cable (0.8 m)
  • 1x hex key
  • Ethernet cable
  • QSG (Quick Start Guide)
  • Packaging box, to keep or recycle

How & Where to Buy?

Take the next step in connectivity. Discover this TRB Compact Gateway today and see how it can transform your industrial operations. Don’t miss out on the opportunity to elevate your enterprise’s communication capabilities.

To buy the Teltonika TRB160 Cat6 LTE Gateway, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.

To order online, click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, don’t hesitate to get in touch with us.

Connect to the world with Teltonika Networks Cellular Gateways, the most reliable and secure devices for your network. Get them now at Novatel, your Teltonika Distributor in Ireland.

Write a review

Please login or register to review

Get geeky with the TRB160 tech specs table below.

MOBILE
Mobile Module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, SIM , ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band Lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
ETHERNET
Ethernet 1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL)
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
Firewall Status Page View all your Firewall statistics, rules, and rule counters
Ports Management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network Topology Visual representation of your network, showing which devices are connected to which other devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network Backup Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load Balancing Balance Internet traffic over multiple WAN connections
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS SSHFS enables you to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack Prevention DDoS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customizable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256,
AES-256-OFB 256, AES-256-CBC 256
IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN DMVPN is a method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support
OPC UA
Supported Modes Client, Server (planned)
Supported Connection Types TCP
MODBUS
Supported Modes Server, Client
Supported Connection Types TCP
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server
MQTT GATEWAY
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported Modes Station, Outstation
Supported Connection Types TCP
DLMS
DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types TCP
API
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite , tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech:, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)
IOT PLATFORMS
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
CPU Qualcomm, 1.2 Ghz, ARM Cortex-A7
RAM 128 MB
FLASH Storage 256 MB
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Factory Settings Reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs
INPUT / OUTPUT
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
POWER
Connector 1 x 4-pin industrial DC power socket
1 x USB Type-C
Input Voltage Range 4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max USB Type-C: 5 VDC
PoE (passive) Possibility to power up through ETH port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption Idle: < 0.25 W, Max: < 3.3 W
PHYSICAL INTERFACES
Ethernet 1 x RJ45 port, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
SIM 1 x Internal SIM slot (Mini SIM – 2FF), 1.8 V/3 V, eSIM (Optional)
Power 1 x 4-pin power connector
USB Type-C
Antennas 2 x SMA for Mobile
Reset Reboot/User default reset/Factory reset button
Other 1 x Virtual network interface via USB Type-C (For power and network data)
PHYSICAL SPECIFICATION
Casing Material Anodized aluminum housing and panels
Dimensions (W x H x D) 83 x 25 x 74.2 mm
Weight 172 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Bulk Orders Welcome!

Are you looking to place a large order? We’ve got you covered! At Novatel, we are pleased to offer bulk order options for our valued customers. Whether you’re stocking up for a big event, taking on a large project for B2B clients, reselling, or needing a large quantity of our products, we’re here to help.

Why Choose Bulk Orders?

  • Convenience: Get all the products you need in one go.
  • Cost Savings: Enjoy significant discounts on bulk purchases.
  • Priority Service: Receive dedicated support for your bulk order needs.

How to Place a Bulk Order:

  1. Contact Us: Reach out to our customer service team at +353 222 3440 or email us.
  2. Provide Details: Let us know the product(s) you’re interested in, the quantity, and any specific requirements.
  3. Get a Quote: We’ll provide you with a customized quote including bulk order discounts.
  4. Confirm Your Order: Once you’re happy with the quote, confirm your order and we’ll take care of the rest!

Need More Information?

If you have any questions or need further assistance, don’t hesitate to contact us. Our team is always ready to help you with your bulk order enquiries.

Thank you for choosing Novatel Communications Ltd. We look forward to serving you!
