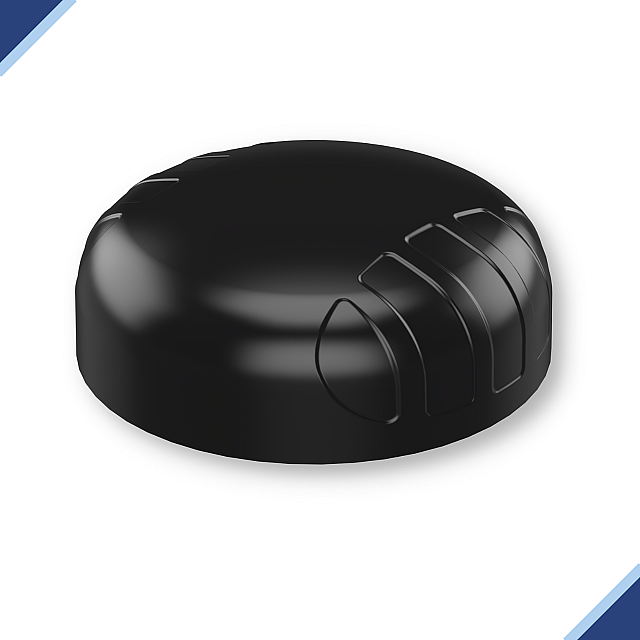

Poynting PUCK Series GPS/2G/3G/4G LTE In-Vehicle Antenna - Main

Poynting PUCK Series GPS/2G/3G/4G LTE In-Vehicle Antenna - Main

Trade Price Available

You can order this for a volume discount from our Trade Website

The Poynting PUCK Series antenna are compact and easy-to-install antenna for in-vehicle cellular application and very ideal for IoT/M2M application, Marine and Agricultural farming markets. It is an antenna system enclosed in a compact but durable housing, and features a 2x2 MIMO technology. The 2x Cellular MIMO antennas (for 2G/3G/4G) covers the 698MHz to 3800MHz frequency band - including the well-known LTE bands (800/1800/2600).

Despite the small size of these antenna system, it can provide excellent performance and connection stability.

Please check on the comparison table below and choose what PUCK antenna best suits your needs.

PUCK Antenna Series Comparison


PUCK-1 PUCK-2 PUCK-4 PUCK-5 PUCK-7 PUCK-8 PUCK-11 PUCK-12
Frequency 690-960 MHz
1710-2700 MHz
3200-3800 MHz
690 MHz - 3800 MHz 690 MHz - 3800 MHz
1575.42 Mhz/1600 MHz
690 MHz - 3800 MHz
2.4 - 2.5 & 5-6 GHz
1575.42 MHz/1600
MHz
698-960 MHz
1710-2700 MHz
3400-3800 MHz
698-960 MHz
1710-2700 MHz
3400-3800 MHz
2.4 & 5 GHz 2.4GHZ / 5GHz
Works On 5G-Ready, 4G LTE, 3G, 2G
2.4GHz WiFi
5G-Ready, 4G LTE, 3G, 2G
WiFi (2.4GHz)
5G, 4G LTE, 3G, 2G
GPS/GLONASS
5G, 4G LTE, 3G, 2G
Dual-band WiFi
GPS/GLONASS
5G Ready, 2G/3G/4G/LTE
Dual-band Wi-Fi (2x2 MIMO)
5G Ready, 2G/3G/4G/LTE
Dual-band Wi-Fi (SISO)
Dual-band Wi-Fi (SISO) Dual-band WiFi
Peak Gain 6 dBi 6 dBi 6 dBi - 5G, 4G LTE, 3G, 2G
21 dBi – GPS/GLONASS
6 dBi - 5G, 4G LTE, 3G, 2G
7.5 dBi - Dual-band WiFi
21 dBi – GPS/GLONASS
6dBi - 5G, 4G LTE, 3G, 2G
7.5dBi - WiFi
6dBi - 5G, 4G LTE, 3G, 2G
7.5dBi - WiFi
7.5dBi - WiFi 7.5 dBi

Feature Summary

All the PUCK antenna models shares similar features as listed below:

  • Compact Design & Low-Profile
  • Well-designed, provides ruggedness, corrosion, water and dust resistance (IP68)
  • Fire-resistant & UV Stable Enclosure
  • Easy installation, multi implementation options (as standard): Spigot Mount, Magnetic Mount, Adhesive Tape Mount & Bracket Mount

Sample Applications

They are best used in the following industries/applications:

  • Digital Signage
  • Agricultural machinery
  • Warehouses & Logistic systems
  • Transport (Buses, Utility & Public Safety)
  • Smart Utilities (Smart Power, Gas & Water Metering)
  • Smart Buildings (Climate control, access control, security, irrigation)
  • Industrial factory automation, robotic machinery and other M2M systems
  • Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
  • Marine & Coastal Applications (small boats, yachts near to coastlines or inner waters)

PUCK-2

Reference Image: Poynting PUCK-2 Technical Drawing
Poynting PUCK-2 Technical Drawing

It's a 5G-ready, 4G LTE, 3G, 2G, WiFi (2.4GHz) external antenna with a peak gain of 6dBi.

Technical Specification

See below table for Poynting PUCK-2 technical specification.

Electrical Specifications – Cellular
Frequency Bands 690-960 MHz
1710-2700 MHz
3200-3800 MHz
Gain (max) Port 1 & 2 6 dBi
VSWR Port 1 & 2 ≤2.5:1 over 85% of the band
Feed Power Handling 10 W
Input impedance 50 Ohm (nominal)
Polarisation Linear Vertical
Coax Cable Loss 0.45 dB/m @ 900 MHz
0.71 dB/m @ 2000 MHz
0.79 dB/m @ 2500 MHz
0.9 dB/m @ 3000 MHz
Coax Cable & Connector Type – Cellular
Cable Length 2m ±5%
Coax Cable Type RTK-031
Connector Type SMA (Male)
NOTE: *The coax cables & connectors are factory mounted to the antenna
Mechanical Specifications
Product Dimensions Ø99.3 mm x 36 mm
Packaged Dimensions 150 mm x 150mm x 120mm
Weight 0.376kg
Packaged Weight 0.507kg
Radome Material PC+ABS (Halogen Free)
Radome Colour Pantone Black
Mounting Type Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic Mount
Environmental Specifications, Certification & Approvals
Wind Survival <220 km/h
Temperature Range (Operating) -40°C to +80°C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection Ratio/Standard IP 68 – 30 minutes up to 1.5m
Salt Spray MIL-STD 810F/ASTM B117
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - Non-condensing
Storage Temperature -40°C to +80°C
Enclosure Flammability Rating UL 94-HB, ECE-R118.02 Certified Cables
Impact Resistance IK 10
Product Safety & Environmental Complies with CE and RoHS standards

Product Box Contents

  • Antenna: A-PUCK-0002-V1-01
  • Mounting bracket:
    • Threaded Spigots (Up to 60mm
    • clamping thickness), Adhesive Surface
    • Mounting & Magnetic Mount

Ordering Information

  • Commercial Name: PUCK-2
  • Order Product Code: A-PUCK-0002-V1-01
  • EAN Number: 6009880915217

PUCK-4

Reference Image: Poynting PUCK-4 Technical Drawing
Poynting PUCK-4 Technical Drawing

Is a 5G, 4G LTE, 3G, 2G, and GPS/GLONASS external antenna, having a 6dBi peak gain on its cellular network while 21dBi on GPS/GLONASS.

Technical Specification

See below table for PUCK-4's technical specification.

Electrical Specifications – Cellular
Frequency Bands 690-960 MHz
1710-2700 MHz
3200-3800 MHz
Gain (max) Port 1 & 2 6 dBi
VSWR Port 1 & 2 ≤2.5:1
Feed Power Handling 10 W
Input Impedance 50 Ohm (nominal)
Polarisation Linear Vertical
Coax Cable Loss 0.45 dB/m @ 900 MHz
0.71 dB/m @ 2000 MHz
0.79 dB/m @ 2500 MHz
0.9 dB/m @ 3000 MHz
DC Short Yes
GPS/Glonass Antenna Electrical Specifications
Frequency Range (GPS) 1575.42MHz/1600MHz
Gain (Max) 21+/-2dBi
VSWR ≤1.5:1
DC Voltage 2.7-3.3 V
DC Current 5-15mA
Noise Figure ≤1.5 dB
Nominal Impedance 50 Ω
Polarisation RHCP
Filter Out Band Attenuation 12dB Min f0+50MHz
16dBi Min f0-50MHz
Cable RTK-031
Connector SMA Male
Voltage 2.7 – 3.3V
Max. Power-W 50
Coax Cable & Connector Type – Cellular
Cable Length 2m ±5%
Coax Cable Type RTK-031
Connector Type SMA (Male)
Coax Cable & Connector Type – GPS
Cable Length 2m ±5%
Coax Cable Type RTK-031
Connector Type SMA (Male)
Mechanical Specifications
Product Dimensions Ø99.3 mm x 36 mm
Packaged Dimensions 150 mm x 150mm x 120mm
Weight 0.426kg
Packaged Weight 0.557kg
Radome Material PC+ABS (Halogen free)
Radome Colour Pantone Black
Mounting Type Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount
Environmental Specifications, Certification & Approvals
Wind Survival <220 km/h
Temperature Range
(Operating):
-40°C to +80°C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection Ratio/Standard IP 68 – 30 minutes up to 1.5m
Salt Spray MIL-STD 810F/ASTM B117
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - Non-condensing
Storage Temperature -40°C to +80°C
Enclosure Flammability Rating UL 94-HB, ECE-R118.02 Certified Cables
Impact Resistance IK 10
Product Safety & Environmental Complies with CE and RoHS standards

Product Box Contents

  • Antenna: A-PUCK-0004-V1-01
  • Mounting bracket:
    • Ø20 Threaded Spigots (Up to 60mm clamping thickness)
    • Adhesive Surface
    • Mounting & Magnetic Mount

Ordering Information

  • Commercial Name: PUCK-4
  • Order Product Code: A-PUCK-0004-V1-01
  • EAN Number: 6009880915224

PUCK-5

Reference Image: Poynting PUCK-5 Technical Drawing
Poynting PUCK-5 Technical Drawing

It's a 5G-ready, 4G LTE, 3G, 2G external antenna, as well as, a Dual-band WiFi and GPS/GLONASS antenna system.

Technical Specification

See below table for PUCK-5's technical specification.

Electrical Specifications – Cellular
Frequency Bands 690-960 MHz
1710-2700 MHz
3200-3800 MHz
Gain (max) Port 1 & 2 6 dBi
VSWR Port 1 & 2 ≤2.5:1
Feed Power Handling 10 W
Input impedance 50 Ohm (nominal)
Polarisation Linear Vertica
Coax Cable Loss 0.45 dB/m @ 900 MHz
0.71 dB/m @ 2000 MHz
0.79 dB/m @ 2500 MHz
0.9 dB/m @ 3000 MHz
GPS/Glonass Antenna Electrical Specifications
Frequency Range (GPS) 1575.42MHz/1600MHz
Gain (Max) 21+/-2dB
VSWR ≤1.5:1
DC Voltage 2.7-3.3 V
DC Current 5-15mA
Noise Figure ≤1.5 dB
Nominal Impedance 50 Ω
Polarisation RHCP
Filter Out Band Attenuation 12dB Min f0+50MHz
16dBi Min f0-50MHz
Cable RTK-031
Connector SMA Male
Voltage 2.7 – 3.3V
Max. Power-W 50
Wi-Fi Electrical Specifications
Frequency 2400-2500 MHz
5000–6000 MHz
Gain (max) Port 1 & 2 7 dBi
VSWR Port 1 & 2 ≤2:1 over 95% of the band
Feed Power Handling 10 W
Nominal Input Impedance 50 Ohm (nominal)
Polarisation Linear Vertical
Coax Cable Loss 0.45 dB/m @ 900 MHz
0.71 dB/m @ 2000 MHz
0.79 dB/m @ 2500 MHz
0.9 dB/m @ 3000 MHz
Path to Ground Yes
Coax Cable & Connector Type -Cellular & Wi-Fi
Cable Length 2m ±5%
Coax Cable Type RTK-031
Connector Type SMA (Male)
RP-SMA Adapters included for Wi-Fi
Coax Cable & Connector Type – GPS
Cable Length 2m ±5%
Coax Cable Type RTK-031
Connector Type SMA (Male)
NOTE: *The coax cables & connectors are factory mounted to the antenna
Mechanical Specifications
Product Dimensions Ø99.3 mm x 36 mm
Packaged Dimensions 150 mm x 150mm x 120mm
Weight 0.523kg
Packaged Weight 0.654kg
Radome Material PC+ABS (Halogen free)
Radome Colour Pantone Black
Mounting Type Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount
Environmental Specifications, Certification & Approvals
Wind Survival <220 km/h
Temperature Range (Operating) -40°C to +80°C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection Ratio/Standard: IP 68 – 30 minutes up to 1.5m
Salt Spray MIL-STD 810F/ASTM B117
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - non-condensing
Storage Temperature -40°C to +80°C
Enclosure Flammability Rating UL 94-HB, ECE-R118.02 Certified cables
Impact Resistance IK 10
Product Safety & Environmental Complies with CE and RoHS standards

Product Box Contents

  • Antenna: A-PUCK-0005-V1-01
  • Mounting Bracket: Ø20 Threaded Spigots (Up to 60mm clamping thickness), Adhesive Surface, Mounting & Magnetic Mount
  • Adapter: 2x RP-SMA(m) To SMA (f)

Ordering Information

  • Commercial Name: PUCK-5
  • Order Product Code: A-PUCK-0005-V1-01
  • EAN Number: 6009880915170

PUCK-12

Reference Image: Poynting PUCK-12 Technical Drawing
Poynting PUCK-12 Technical Drawing

PUCK-12 is 2x2 MIMO dual-band Wi-Fi antenna with a peak gain of 7.5dBi.

Technical Specification

Below table is PUCK-12's technical specification.

Wi-Fi Electrical Specifications
Frequency 2400-2500 MHz
5000–6000 MHz
Gain (Max) 7 dBi
VSWR ≤2.5:1 over 95% of the band
Feed Power Handling 10 W
Nominal Input Impedance 50 Ohm (nominal)
Polarisation Linear Vertical
Coax Cable Loss 0.45 dB/m @ 900 MHz
0.71 dB/m @ 2000 MHz
0.79 dB/m @ 2500 MHz
0.9 dB/m @ 3000 MHz
Path to Ground Yes
Mechanical Specifications
Product Dimensions Ø99.3 mm x 36 mm
Packaged Dimensions 150 mm x 150mm x 120mm
Weight 0.376kg
Packaged Weight 0.507kg
Radome Material PC+ABS (Halogen free)
Radome Colour Pantone Black
Mounting Type Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount
Coax Cable & Connector Type – Wi-Fi
Cable Length 2m ±5%
Coax Cable Type RTK-031
Connector Type SMA (Male)
Adapters 2x RPSMA(m) To SMA (f)
*The coax cables & connectors are factory mounted to the antenna
Environmental Specifications, Certification & Approvals
Wind Survival <220 km/h
Temperature Range (Operating): -40°C to +80°C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection Ratio/Standard IP 68 – 30 minutes up to 1.5m
Salt Spray MIL-STD 810F/ASTM B117
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - non-condensing
Storage Temperature -40°C to +80°C
Enclosure Flammability Rating UL 94-HB, ECE-R118.02 Certified Cable
Impact Resistance IK 10
Product Safety & Environmental Complies with CE and RoHS standard

Product Box Contents

  • Antenna: A-PUCK-0012-V1-01
  • Mounting bracket:

    • Ø20 Threaded Spigots (Up to 60mm clamping thickness), Adhesive Surface

    • Mounting & Magnetic Mount

  • Adapters: 2x RPSMA(m) To SMA (f)

Ordering Information

  • Commercial Name: PUCK-12
  • Order Product Code: A-PUCK-00012-V1-01
  • EAN Number: 6009880915248

How and Where to Buy

You can order any of the PUCK 4G LTE External Antenna for In-vehicle, using Add to Cart button. Just make sure you click on the right varian/model you need and then go through the checkout page. You can pay securely using your Credit Card via our secure page. Your payment shall be handled via Stripe Payment Gateway.

You could also drop by and buy from our physical store located Novatel Communications, 24 Main Street, Buttevant, Co. Cork, Ireland.

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are normally delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a tracking information for your order, after it is dispatched. If you have any questions on your order status, please contact us.

Write a review

Note: HTML is not translated!
    Bad           Good

  • Brand: Poynting
  • Product Code: PUCK-Series
  • Availability: In Stock
  • €49.08
  • Ex Tax: €39.90

Available Options

Send Enquiry

Please Click Here to send us your questions. We'll get back to you as soon as possible.

Tags: poynting-antenna, puck-antenna, 5g-ready, gps antenna, glonass antenna, external-router-antenna

Loading...
