Teltonika RUT241: 4G LTE Wi-Fi Industrial Router with Two Ethernet Ports
Available to Order
Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.
- Stock: Delivery Lead Time: 5-7 Days
- Brand: Teltonika Networks
- Model: RUT241 010000
- Weight: 125.00g
- Dimensions: 148.00mm x 173.00mm x 71.00mm
- MPN: RUT241 010000
Available Options
Read more about eSIM on this page. You can contact us for MOQ details.
Included in the Price of this Product is the WEEE Recycling Charge.
Click on the router variant below to visit the product order page:
Quick Tech Specs; Cat 4 4G (LTE) Mobile Internet, 10/100Mbps Ethernet Port x 2 (1xWAN, and 1xLAN), 2.4 GHz (b/g/n) Wi-Fi, 128MB RAM, 16MB Flash Memory, Passive PoE Capability, with Remote Management System via RMS. Read the full technical specifications below.
Experience Uninterrupted Internet Connectivity with RUT241 Cellular Router. This model replaces the old and now end-of-life RUT240 model.
If you’re tired of dealing with slow internet speeds, unreliable connections, and security concerns, it’s time to upgrade to the Teltonika RUT241. This powerful router is designed to provide high-speed internet connectivity, robust security, and reliable performance, making it the perfect solution for anyone who needs fast and reliable internet access.
With its advanced features and cutting-edge technology, the Teltonika RUT241 is the perfect solution for anyone who needs fast and reliable internet connectivity. Whether you’re working from home, streaming movies, or just browsing the web, this powerful router has you covered.
Some of the key features of the Teltonika RUT241 include high-speed internet connectivity, robust security, and reliable performance. With its advanced LTE Cat 4 technology, you can enjoy lightning-fast internet speeds of up to 150 Mbps, ensuring that you can stream, download, and upload with ease. And with its advanced security features, including VPN and firewall protection, you can rest assured that your data is safe and secure.
But the benefits of using the Teltonika RUT241 don’t stop there. By providing uninterrupted internet access, enhanced data protection, and increased productivity, this powerful router can help you stay connected and get things done no matter where you are. And with its rugged design and reliable performance, you can rest assured that you’ll always be able to stay connected and get things done.
But don’t just take our word for it - here’s what some of our satisfied customers have to say about this Industrial Router:
- “I’ve been using the Teltonika RUT241 for several months now, and I couldn’t be happier with its performance. It’s fast, reliable, and easy to use, and it’s helped me stay connected and productive no matter where I am.”
- “The Teltonika RUT241 is a game-changer for anyone who needs reliable internet connectivity. It’s easy to set up, works flawlessly, and has saved me a ton of time and frustration.”
- “I bought RUT241 for my home office and I’m very satisfied with it. It’s easy to set up and use, and it provides me with a fast and consistent internet connection. I also like the VPN feature, which allows me to access my work network securely.” - John D., Freelancer
- “RUT241 is a great router for remote locations. I use it for my camping trips and it works flawlessly. It connects to the 4G LTE network quickly and reliably, and it has a long battery life. It’s also very durable and weather-resistant.” - Lisa M., Traveler
- “RUT241 is a lifesaver for my small business. It allows me to connect to the internet from anywhere, even in areas where there is no Wi-Fi or cable connection. It also helps me save money on my phone bill, since I can use VoIP instead of cellular calls.” - Mark S., Entrepreneur
Features & Benefits
RUT241 is more than just a router. It’s also a smart device that offers advanced features to enhance your internet experience. Some of these features include:
- VPN - Secure your data and privacy with built-in VPN support. You can choose from various VPN protocols, such as OpenVPN, IPsec, PPTP, L2TP, and more.
- Firewall - Protect your network from unauthorized access and malicious attacks with a robust firewall. You can customize the firewall rules according to your needs and preferences.
- QoS - Prioritize your traffic and optimize your bandwidth usage with quality of service (QoS) features. You can assign different priorities to different applications, users, or devices.
- SMS Control - Manage your router remotely using SMS commands. You can check the router status, reboot the router, change the settings, and more. With RUT241, you can enjoy the benefits of fast and secure internet anywhere. Here are some of the benefits that RUT241 can offer you:
- Uninterrupted Internet Access - Stay online and productive even when there is no wired or Wi-Fi connection available. RUT241 can automatically switch between 4G LTE and 3G networks to ensure optimal internet performance.
- Enhanced Data Protection - Keep your data and privacy safe from hackers and prying eyes with RUT241’s encryption and authentication features. RUT241 also supports HTTPS, SSH, and Telnet for secure access to the router.
- Increased Productivity - Boost your efficiency and performance with RUT241’s fast and stable internet connection. You can stream videos, download files, upload documents, make video calls, and more without any lag or interruption.

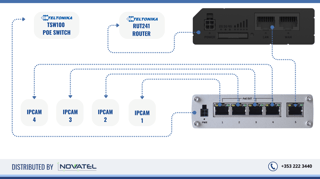

Sample Use Case
Remote IP Camera Management via RMS.
What’s In The Box?
The standard package contains the following:
- The RUT241 Router Unit
- 9 W PSU
- 2 x LTE antennas (swivel, SMA male)
- 1 x Wi-Fi antenna (swivel, RP-SMA male)
- Ethernet cable (1.5 m)
- SIM Card Adapter kit
- QSG (Quick Start Guide)
Downloads
User Manual
The RUT241 device user manual can be found on this page. An information summary on all the features and capabilities of the Router can be found on the said link.
Available Variants
Select your preferred version based on your desired country/region of deployment.
Product code | Region | Frequency Bands |
---|---|---|
RUT241 0*** | Europe*, the Middle East, Africa, Korea, Thailand |
4G (LTE-FDD): B1, B3, B7, B8, B20, B28A 3G: B1, B8 2G: B3, B8 |
RUT241 1*** | Europe*, the Middle East, Africa |
4G (LTE-FDD): B1, B3, B5, B7, B8, B20 4G (LTE-TDD): B40 3G: B1, B5, B8 2G: B3, B8 |
RUT241 3*** | Global* |
4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 4G (LTE-TDD): B38, B39, B40, B41 3G: B1, B2, B4, B5, B6, B8, B19 2G: B2, B3, B5, B8 |
RUT241 6*** | Australia, New Zealand, Taiwan |
4G (LTE-FDD): B1, B3, B5, B7, B8, B28 4G (LTE-TDD): B40 3G: B1,B5, B8 2G: B3, B5, B8 |
RUT241 9*** | North America: Verizon, AT&T, T-Mobile |
4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B71 3G: B2, B4, B5 |
RUT241 8*** | Japan |
4G (LTE-FDD): B1, B3, B8, B18, B19, B26 4G (LTE-TDD): B41 3G: B1, B6, B8, B19 |
How & Where To Buy?
To buy the Teltonika RUT241 4G LTE & Wireless Router with SIM Card Slot, you can drop by our store (by appointment only) located at Novatel Communications, Main Street, Buttevant, Co. Cork P51 K066.
To purchase online, click the Add to Cart button, then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Stripe Payment Gateway. You can use any card it supports (MasterCard, Visa, American Express, Diners, and more…).
How Will My Order Be Delivered?
Your order(s) will be shipped via express delivery and are normally delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information.
Connect to the world with Teltonika Networks Cellular Routers, the most reliable and secure devices for your network. Get them now at Novatel, your Teltonika Distributor in Ireland.
Get geeky with the RUT241 tech specs table below.
MOBILE | |
---|---|
Mobile Module | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White List | Operator black/white list |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Band Management | Band Lock, Used band status display |
APN | Auto APN |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
WIRELESS | |
Wireless Mode | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
WiFi Security | WPA2-Enterprise-PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
SSID/ESSID | SSID stealth mode and access control based on MAC address |
WiFi Users | Up to 50 simultaneous connections |
Wireless Hotspot | Captive portal (Wi-Fi Hotspot), internal/external RADIUS server, built in customizable landing page |
ETHERNET | |
WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) |
Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
VoIP Passthrough Support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forward, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 DDNS service providers, others can be configured manually |
Network Backup | WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
Load Balancing | Balance Internet traffic over multiple WAN connections |
Hotspot | Internal/external Radius server, captive portal or Wi-Fi Hotspot, built in customizable landing page |
SSHFS | SSHFSSSHFS Allows the possibility to mount remote file system via SSH protocol |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 Certificates certificates, TACACS+, Radius, IP & Login attempts block |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack Prevention | DDoS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag based VLAN separation |
Mobile Quota Control | Custom data limits for SIM card |
Web Filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
IPsec | IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
GRE | GRE tunnel, GRE tunnel over IPsec support |
PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | DMVPN is a Method of building scalable IPsec VPNs |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN client support |
WireGuard | WireGuard VPN client and server support |
Tinc | Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. |
MODBUS TCP SLAVE | |
ID range | |
Allow Remote Access | Allow access through WAN |
Custom Registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality |
MODBUS TCP MASTER | |
Supported Functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported Data Formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
MODBUS DATA TO SERVER | |
Protocol | HTTP(S), MQTT, Azure MQTT |
MQTT GATEWAY | |
MQTT Gateway | Allows sending commands and receiving data from MODBUS Master through MQTT broker |
DNP3 | |
Supported Modes | TCP Master, DNP3 Outstation |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/of |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech:, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP Trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
IoT PLATFORMS | |
Cloud of Things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
Azure IoT Hub | Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
SYSTEM CHARACTERISTICS | |
CPU | Mediatek MIPS 24Kc 580 MHz |
RAM | 128 MB, DDR2 |
FLASH storage | 16 MB, SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW |
RMS | Update FW/configuration for multiple devices at once |
Keep Settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating System | RutOS (OpenWrt based Linux OS) |
Supported Languages | Busybox Shell, Lua, C, C++ |
Development Tools | SDK package with build environment provided |
INPUT/OUTPUT | |
Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
Events | Email, RMS, SMS |
I/O juggler | Allows to set certain I/O conditions to initiate event |
POWER | |
Connector | 4-pin industrial DC power socket |
Input Voltage Range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, 9-30 VDC |
Power consumption | < 6.5 W Max |
PHYSICAL INTERFACES | |
Ethernet | 2 x RJ45 ports, 10/100 Mbps |
I/O’s | 1 x Digital Input, 1 x Digital Output on 4 pin power connector |
Status LEDs | 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
SIM | SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder |
Power | 1 x 4 pin DC connector |
Antennas | 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors |
Reset | Reset Reboot/Factory reset button |
PHYSICAL SPECIFICATION | |
Casing Material | Aluminium housing, plastic panels |
Dimensions (W x H x D) | 83 x 25 x 74 mm |
Weight | 125 g |
Mounting Options | Bottom and sideways DIN rail mounting slots |
OPERATING ENVIRONMENT | |
Operating Temperature | -40 °C to 75 °C |
Operating Humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory | CE/RED, UKCA, CB |
EMI IMMUNITY | |
IMMUNITY Standards | EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019 |
ESD | EN 61000-4-2:2009 |
RS | EN 61000-4-3:2020 |
EFT | EN 61000-4-4:2012 |
Surge immunity (AC Power Line) | EN 61000-4-5:2014+A1:2017 |
CS | EN 61000-4-6:2014 |
DIP | EN IEC 61000-4-11:2020 |
RF | |
Standards | EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1 |
SAFETY | |
Standards | EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018 |
