Teltonika TRB500: Industrial 5G Gateway with VPN, Bridge Mode, and 4x4 MIMO Feature



- Stock: In Stock
- Brand: Teltonika
- Model: TRB500
- Weight: 648.00g
- Dimensions: 175.00mm x 355.00mm x 60.00mm
- MPN: TRB500
Included in the Price of this Product is the WEEE Recycling Charge.
Teltonika RMS - For Remote Management of Your Routers
Teltonika Networks finally released its highly sought-after Industrial 5G Gateway, and Router model in 2022, the TRB500, and the RUTX50. Both models mentioned can be used with the Poynting 5G Capable Antennas, like the; MIMO-3-V2 series Antennas, XPOL-2-5G, and the XPOL-1-5G.
The TRB500 is a full-featured industrial gateway (also for small-office and home use) with a Gigabit Ethernet interface and two configurable I/Os. It offers high-level customization, integration with third-party applications, and implementation of a multitude of scenarios, and also offers high-end performance in a small form factor: it can be mounted to a wall or other surface with ease, all with the ultimate power and performance you expect from Teltonika Networks’ high-quality and industrial-grade products.
This particular Teltonika Gateway is powered by a Single-core ARM Cortex A7: 1.5GHz processor and comes with 256 MB (128 MB available for user-space), and 512 MB (200 MB available for user space) for Flash Storage. Read the full Technical Specifications below, to learn more.
The TRB500 Features
- Gigabit Ethernet: Reliable communication for high data throughput.
- SA & NSA: Supports both architectures to leverage the 5G infrastructure.
- Ultra-low Latency: Single-digit latency for mission-critical applications.
- Light and Compact: One of the smallest 5G gateways available in the market.
- Band Locking: This enables you to lock the set of bands that gets you the fastest data rates.
- 5G Capable (backward compatible with 4G (LTE CAT 20)/3G Network Technologies): Ultra-high cellular speeds of up to 1 Gbps.
- Bridge Mode Capable: This lets you enable direct connection (bridge) between a mobile ISP and your target device inside your LAN.
- Remote Management System (RMS) Compatible: For optimized remote management and monitoring capabilities of large fleets of devices.
- VPN: Supports various well-known VPN protocols such as; OpenVPN, WireGuard, ZeroTier, DMVPN, GRE, and others (see tech specs table below.).
- 4x4 MIMO: Enables ultra-fast 5G network speeds with ultra-low latency for mission-critical infrastructures, and high-data throughput, ensured by 4 external antennas.
YouTube Video Presentation
The TRB-500 Technical Specifications
MOBILE | |
---|---|
Mobile Module | 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE): LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G: 42 Mbps DL, 5.76Mbps UL |
Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
SMS/Call | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White List | Operator black/white list |
Band Management | Band lock, Used band status display |
APN | Auto APN |
Bridge Mode | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | Gateway assigns its mobile WAN IP address to another device on LAN |
ETHERNET | |
LAN | 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
NETWORK | |
Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP, and ICMP for link inspection |
Firewall | Port forwards, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation |
DDNS | Supported >25 service providers, others can be configured manually |
SSHFS | Possibility to mount remote file system via SSH protocol |
SECURITY | |
Authentication | The pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via the WebUI, and unlimited firewall configuration via CLI; NAT; NAT-T |
Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag-based VLAN separation |
Mobile Quota Control | Set up custom data limits for SIM card |
WEB Filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access Control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, and 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
GRE | GRE tunnel |
IPsec | IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
PPTP, L2TP | Client/Server services can run simultaneously, and L2TPv3 support |
SSTP | SSTP client instance support |
STUNNEL | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | DMVPN is a method of building scalable IPsec VPNs |
WireGuard | WireGuard VPN client and server support |
ZeroTier | ZeroTier VPN |
MODBUS | |
MODBUS TCP SLAVE | |
ID filtering | Respond to one ID in the range [1;255] or any |
Allow Remote Access | Allow access through WAN |
Custom Registers | MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
MODBUS TCP MASTER | |
Supported Functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported Data Formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
MQTT GATEWAY | |
Gateway | Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
DNP3 | |
Supported Modes | TCP Master, DNP3 Outstation |
DATA TO SERVER | |
Protocol | HTTP(S), MQTT, Azure MQTT, Kinesis |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, system log, kernel log |
FOTA | Firmware update from sever, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang up with a timer |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
IoT PLATFORMS | |
Cloud of Things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
Azure IoT Hub | Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
SYSTEM CHARACTERISTICS | |
CPU | Single-core ARM Cortex-A7, 1.5 GHz |
RAM | 256 MB (128 MB available for userspace) |
FLASH Storage | 512 MB (200 MB available for userspace) |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from a file, check FW on the server, configuration profiles, configuration backup |
FOTA | Update FW |
RMS | Update FW/configuration for multiple devices |
Keep Settings | Update FW without losing the current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt-based Linux OS) |
Supported Programming Languages | Busybox shell, Lua, C, C++ |
Development Tools | SDK package with build environment provided |
INPUT/OUTPUT | |
Configurable I/O | 2 x Configurable Inputs/Outputs. Digital input 0: 5 V detected as logic low, 8: 40 V detected as logic high. Open collector output, max output 30V, 300mA |
Output Control | HTTP POST/GET, Schedule |
Events | SMS, EMAIL |
I/O Juggler | Allows setting certain I/O conditions to initiate an event |
POWER | |
Connector | 4-pin industrial DC power socket |
Input Voltage Range | 9: 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max |
Power consumption | Idle: <3 W, Max <6 W |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
Ethernet | 1 x RJ45 port, 10/100/1000 Mbps |
I/Os | 2 x Configurable I/O pins on the 4-pin power connector |
USB | 1 x Virtual network interface via micro USB |
Status LEDs | 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
SIM | 1 x SIM slot (Mini SIM: 2FF), 1.8 V/3 V |
Power | 1 x 4-pin DC power connector |
Antenna | 4 x SMA for Mobile |
Reset | Reboot/User default reset/Factory reset button |
Grounding | Grounding screw terminal |
PHYSICAL SPECIFICATIONS | |
Casing Material | Aluminum Housing |
Dimensions (W x H x D) | 100 x 30 x 93.4 mm |
Weight | 241g |
Mounting Options | DIN rail, Flat surface |
OPERATING ENVIRONMENT | |
Operating Temperature | -40 °C to 75 °C |
Operating Humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |

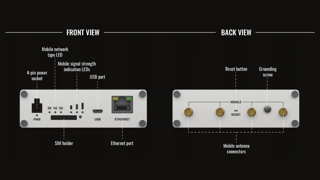

Illustration
Downloads
What’s in the Box
Standard Package Content of the TRB500 are the following:
- TRB500 Gateway Unit
- A SIM Card Adapter Kit
- 9W Power Supply Unit (PSU)
- Micro-USB cable (0.8 meters)
- Manufacturer-supplied Ethernet cable
- 4 x Mobile antennas (swivel, SMA male)
- Quick Start Guide (QSG), and an RMS Flyer
