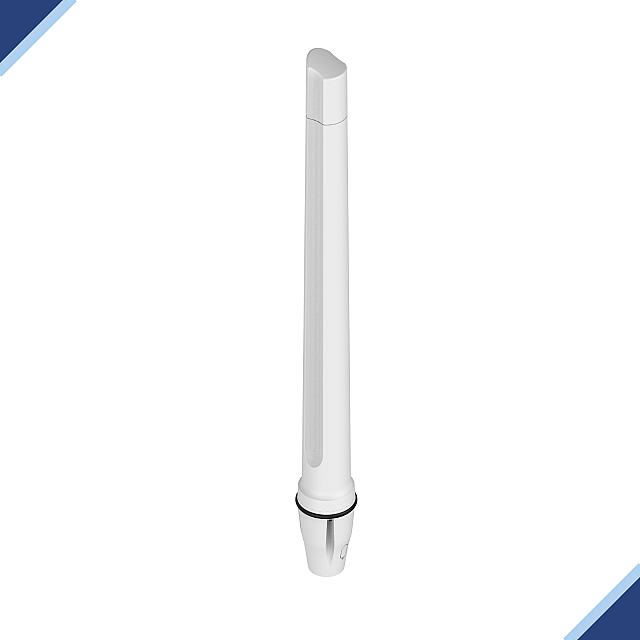

Poynting OMNI-414: Omni-Directional Marine 4x4 MIMO 5G/LTE Antenna

Stay Connected, No Matter Where the Waves Take You! The Poynting OMNI-414 is the ultimate solution for seamless marine and coastal communication. Designed to meet the demanding needs of maritime professionals and enthusiasts, this ultra-wideband antenna ensures you stay connected, even in the most challenging environments.

Poynting OMNI-414 5G/4G Antenna For Yachts, Boats, and other Marine Vessels
5G Marine Antenna On a Boat.

Key Features

  • Versatile Mounting Options: The antenna comes with various stainless steel mounting brackets, making installation on any vessel quick and easy.
  • Robust and Weatherproof: Built to withstand harsh marine conditions, the OMNI-414 boasts an IP68 rating, UV stability, and saltwater protection, ensuring long-lasting durability.
  • 4x4 MIMO Capability: With vertically separated radiating elements within a single radome, the OMNI-414 offers superior pattern control and enhanced performance, providing robust and stable connections.
  • Ultra-Wideband Coverage: The OMNI-414 supports all contemporary LTE and 5G frequency bands from 617 to 3800 MHz, including the latest LTE Band 71 and CBRS bands. This ensures you have access to the fastest and most reliable networks available.

Benefits

  • Cost Savings: With its wide frequency coverage and robust design, the OMNI 414 reduces the need for multiple antennas, saving you time and money on installation and maintenance.
  • Enhanced Productivity: By providing stable and fast internet access, the OMNI 414 allows you to work efficiently, stream content, and stay in touch with loved ones, no matter where you are.
  • Uninterrupted Connectivity: Whether you’re navigating open seas or staying close to the coast, the 414 antennna model guarantees reliable and high-speed connectivity, ensuring you never miss an important update or communication.

What’s in the Box?

Standard Goodies Inside:

  • Poynting Antenna Unit: OMNI-414 (A-OMNI-0414-V1-01)
  • Mounting Bracket: 1" (14 TPI) Marine Adapter / (BRKT-40) & L-bracket (Ø30-50mm Pole)
  • Packaging box, to keep or recycle

How & Where to Buy?

Order now and take the first step towards seamless connectivity on the water.

To buy the Poynting OMNI-414 Marine 5G/4G LTE Antenna, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.

To order online, click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, don’t hesitate to get in touch with us.

Write a review

Please login or register to review

Get geeky with the Poynting OMNI-414 Full Technical Specifications below.

Technical Specification

ELECTRICAL SPECIFICATION
Frequency Bands (MHz) 617 - 960
1427 - 1517
1710 - 2700
3400 - 3800
Gain (Max) -0.5 dBi @ 617 - 960 MHz
1 dBi @ 1427 - 1517 MHz
3.5 dBi @ 1710 - 2700 MHz
1.8 dBi @ 3400 - 3800 MHz
Gain (Mean) -2 dBi @ 617 - 960 MHz
-1 dBi @ 1427 - 1517 MHz
0.5 dBi @ 1710 - 2700 MHz
0 dBi @ 3400 - 3800 MHz
VSWR 0 dBi @ 3400 – 3800 MHz
<2:1
across 90% of the bands
Feed Power Handling 10 W
Input Impedance 50 Ohm (nominal)
Polarisation Linear Vertical
Coax Cable Loss 0.385 dB/m @ 900 MHz
0.507 dB/m @ 1500 MHz
0.565 dB/m @ 1800 MHz
0.666 dB/m @ 2400 MHz
0.788 dB/m @ 3000 MHz
DC Short Yes
MECHANICAL SPECIFICATION
Product Dimensions 750 mm x Ø75 mm (Incl. BRKT-40)
Packaged Dimensions 705 mm x 150 mm x 100 mm
Weight 0.86 kg
Packaged Weight 1.90 kg
Radome Material UV Stable Marine ASA
Radome Colour Brilliant White
Pantone P 179-1C
Mounting Type Standard 1" -14 TPI marine mount & Wall/pole mount
ENVIRONMENTAL SPECIFICATIONS, CERTIFICATIONS & APPROVALS
Wind Survival <160 km/h
Temperature Range (Operating) -40°C to +80°C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection Ratio/Standard IP 68
Salt Spray MIL-STD 810G/ASTM B117
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - non-condensing
Storage Temperature -40°C to +80°C
Enclosure Flammability Rating UL 94-HB
Impact Resistance IK 08
Product Safety & Environmental Complies with CE and RoHS standards
