Poynting RIPL Series: Omni-Directional 5G/LTE Antenna for Yachts 16X16 Multi MIMO Antenna Array
- Stock: In Stock
- Brand: Poynting
- Model: RIPL
- Weight: 23.64kg
- MPN: RIPL
How did you survive before receiving text messages from those in-the-know on the go with the Poynting RIPL Marine 5G/4G Antenna for Signals? Never again will squinting at your phone screen bring on a literal headache. Just say goodbye to weak signals and hello to a reliable Internet connection, GPS location updates, always-on connectivity, and fast data speeds available right at sea. Stay entertained with this powerful marine antenna.
The Poynting RIPL 5G/4G Cellular Omnidirectional MIMO Antenna. This antenna was designed specifically for marine & coastal applications, offering a wideband coverage from 617 to 7200 MHz with a peak gain of 9.5dBi. The enclosure is weatherproof, making it suitable for severe weather conditions and the IP65 rating means it can take on any environment that Mother Nature might throw at you!
Quick Features
You can read the full technical data sheet in this section.
- Band 71 Compatible
- IP65 Weather/Dust Resistant Enclosure
- Covers Contemporary 5G/LTE Band from 617 MHz to 7200 MHz
- High-performance, Omni-directional Marine & Coastal Antenna
- Up to 16x16 MIMO (RIPL-16) Capability For Improved Performance
- UV and saltwater protection for marine and coastal applications
- Innovative heat sink design for improved temperature regulation

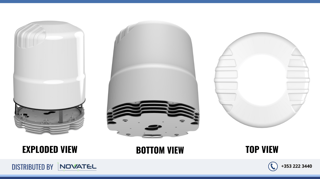

- Features A Router/Modem Enclosure at its Base - See Image Below
- 8x8 MIMO (for the RIPL-8 variant) or 16x16 MIMO (for the RIPL-8 variant) Antenna Solution
Use Cases & Application Areas
- Enhanced LTE/4G and 5G Reception
- Fixed Wireless Internet Backhaul
- Increase System Transmission Reliability
- Harsh Environments Such As Harbour Buildings, and Buoys
- Marine Applications: Super Yachts, Commercial Vessels, Cruise Ships, Ferries, Private Yachts, and Towing Vessels
RIPL Antenna Variants/Options
| RIPL-16 | RIPL-8 | |
|---|---|---|
| SKU | A-RIPL-0016-V1-01 | A-RIPL-0008-V1-01 |
| EAN | 6009710927199 | 6009710927175 |
| COAX Cable Type |
18 x RG 316 (RA-SMA-M to RA-SMA-M): LTE & GPS 4 x RG 316 (RA-RPSMA-M to RA-SMA-M): Wi-Fi |
10 x RG 316 (RA-SMA-M to RA-SMA-M): LTE & GPS 4 x RG 316 (RA-RPSMA-M to RA-SMA-M): Wi-Fi |
| COAX Cable Length | 0.35m | 0.35m |
| Color | White | White |
| SISO / MIMO | 16x16 MIMO | 8x8 MIMO |
| Ports |
LTE- Vertical Polarised (x 8) LTE- Horizontal Polarised (x 8) Wi-Fi- Vertical Polarised (x 2) Wi-Fi- Horizontal Polarised (x 2) GPS (x 2) |
LTE- Vertical Polarised (x 4) LTE- Horizontal Polarised (x 4) Wi-Fi- Vertical Polarised (x 2) Wi-Fi- Horizontal Polarised (x 2) GPS (x 2) |
| Frequency Bands | 617 - 7200 MHz | 617 - 7200 MHz |
| Polarisation | Vertical & Horizontal | Vertical & Horizontal |
| Peak Gain | 9.5 dBi | 9.5 dBi |
| Connector Type | 22 x SMA (F) | 14 x SMA (F) |
| Weight | 15.44 kg | TBD |
| Packaged Weight | 23.64 kg | TBD |
Technical Specifications
The below table is a provisional technical specifications of the Poynting RIPL Series Antenna (finalised version to be updated once available).
| Electrical Specifications - Cellular | |
|---|---|
| Frequency Bands |
617 – 960 MHz 1427 – 1517 MHz 1710 – 2700 MHz 3400 – 4200 MHz 5000 – 7200 MHz |
| Gain Vertical |
5.5 dBi @ 617 – 960 MHz 5 dBi @ 1427 – 1517 MHz 6 dBi @ 1710 – 2700 MHz 9.5 dBi @ 3400 – 4200 MHz 9 dBi @ 5000 – 7200 MHz |
| Gain Horizontal |
1 dBi @ 617 – 960 MHz 0 dBi @ 1427 – 1517 MHz 3 dBi @ 1710 – 2700 MHz 1 dBi @ 3400 – 4200 MHz 1 dBi @ 5000 – 7200 MHz |
| VSWR Vertical | ≤2.5:1 across 90% of the bands |
| VSWR Horizontal | ≤2.5:1 |
| Feed Power Handling | 10 W |
| Input Impedance | 50 Ohm (nominal) |
| DC Short | Yes |
| Electrical Specifications - GPS/Glonass | |
| Frequency Range (Gps) | 1575.42MHz/1600MHz |
| Gain (Max) | 21+/-2dBi |
| VSWR | ≤1.5:1 |
| DC Voltage | 2.7-3.3 V |
| DC Current | 5-15mA |
| Noise Figure | ≤1.5 dB |
| Nominal Impedance | 50 Ω |
| Polarisation | RHCP |
| Filter Out Band Attenuation |
12dB Min f0+50MHz 16dBi Min f0-50MHz |
| Max. Power | 50 W |
| Coax Cable Loss | 0.71 dB/m @ 1500 MHz |
| Electrical Specifications - Wifi | |
| Frequency |
2400 - 2500 MHz 5000 – 7200 MHz |
| Gain (Max) |
5 dBi @ 2400 - 2500 MHz 8.5 dBi @ 5000 - 7200 MHz |
| VSWR | ≤ 2:1 over 95% of the band |
| Feed Power Handling | 10 W |
| Nominal Input Impedance | 50 Ohm (nominal) |
| Coax Cable Loss |
0.91 dB/m @ 2400 MHz 1.65 dB/m @ 5800 MHz |
| Path To Ground | Yes |
| Mechanical Specifications | |
| Product Dimensions | 496 mm x Ø410 mm |
| Packaged Dimensions | 546mm x 460mm |
| Radome Material | UV Stable E-Glass |
| Radome Colour |
Brilliant White Pantone P 179-1 C |
| Mounting Type | Surface mount |
| Environmental Specifications, Certifications & Approvals | |
| Wind Survival | ≤186 km/h |
| Temperature Range (Operating) | -40°C to +80°C |
| Environmental Conditions | Outdoor/Indoor |
| Water Ingress Protection Ratio/Standard | IP 65 |
| Salt Spray | MIL-STD 810G/ASTM B117 |
| Operating Relative Humidity | Up to 98% |
| Storage Humidity | 5% to 95% - non-condensing |
| Storage Temperature | -40°C to +80°C |
| Enclosure Flammability Rating | UL 94-HB |
| Impact Resistance | IK 08 |
| Product Safety & Environmental | Complies with CE and RoHS standards |
