Teltonika RUTM50: Dual-SIM 5G Router For North American Mobile Operator

Teltonika RUTM50: Dual-SIM 5G Router For North American Mobile Operator
Teltonika RUTM50: Dual-SIM 5G Router For North American Mobile Operator

Available to Order

Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.

Ex Tax: €496.75
  • Stock: Back Order
  • Brand: Teltonika Networks
  • Model: RUTM50
  • Weight: 1,077.00g
  • Dimensions: 175.00mm x 355.00mm x 60.00mm
  • MPN: RUTM50 000000
WEEE Recycling Charge

Included in the Price of this Product is the WEEE Recycling Charge.

Unleash the potential of 5G with the RUTM50. The ultimate cellular 5G router for North America!

Do you want to enjoy ultra-high cellular speeds, reliable connectivity, and advanced networking solutions? If so, you need this remarkable industrial router from Teltonika Networks. This router unit is an FCC-certified router that supports both SA and NSA 5G architectures, offering up to 3.4 Gbps download and 900 Mbps upload speeds. It also has dual SIM, 5x Gigabit Ethernet ports, Wi-Fi, GPS, a powerful CPU, and RUTOS software for easy configuration and management. Whether you need it for industrial, commercial, or residential applications, the RUTM50 router will deliver the best performance and functionality.

Notable Features

Reference Image: Quick Features for the RUTM50 Dual SIM For Auto Failover, SA & NSA 5G architectures, GNSS for location services, Remote Management Access Capability, and more
Quick Features: Dual SIM For Auto Failover, SA & NSA 5G architectures, GNSS for location services, Remote Management Access Capability, and more .

The future of wireless communication is here.

  • Dual SIM with Auto-Failover And Backup WAN

    This networking device has two SIM card slots that allow you to use different mobile network providers for better coverage and cost-efficiency. You can set up auto-failover scenarios that switch between SIM cards in case of a weak signal, data limit, roaming, or network failure. You can also use the WAN port as a backup option in case both SIM cards lose connection. With the RUTM50, you can ensure that your network is always up and running.

  • SA & NSA 5G Architectures Support

    The router supports both standalone (SA) and non-standalone (NSA) 5G architectures, which means it can leverage the existing 4G infrastructure as well as the new 5G infrastructure. This gives you more flexibility and compatibility when choosing your mobile network provider and service plan. You can also benefit from the lower latency, higher bandwidth, and better reliability that 5G offers.

  • Future-proofing with Backward Compatibility

    The unit is not only designed for 5G but also backward compatible with 4G (LTE Cat 19) and 3G networks. This means that you can use it in areas where 5G is not yet available or not fully deployed. You can also enjoy the high-speed and high-capacity features of LTE Cat 19, which offers up to 1.6 Gbps download and 200 Mbps upload speeds. It is a future-proof solution that will keep your network up to date with the latest technology.

More Features Below

  • Remote Management and Security Features

    This industrial router can be remotely managed via Teltonika Remote Management System (RMS), a cloud-based platform that allows you to monitor and configure your devices from anywhere. You can access various statistics, logs, and settings of your switch, as well as perform firmware updates or backups. You can also use RMS to create VPN tunnels between your devices and secure your network traffic. It also supports VLAN tagging, MAC filtering, storm control, and loop detection features, which enhance network security and stability.

  • Wi-Fi Connectivity and GPS Tracking

    It has a built-in dual-band Wi-Fi module that supports 802.11b/g/n/ac standards with data transmission rates up to 867 Mbps. You can use it as an access point or a station to connect your wireless devices to the internet or to each other. You can also set up a wireless hotspot with a captive portal, SMS authorization, and user management features.

    This dual-sim router also has a built-in GPS module that allows you to track your device’s location in real-time or store it in internal memory.

  • Robust Design And Easy Installation

    This router has a robust metal enclosure that protects it from dust, moisture, vibration, and extreme temperatures. It also has a wide input voltage range and surge protection features that ensure its durability and reliability.

    The RUTM50 router is easy to install and mount on various surfaces with its DIN rail or wall mounting options. It also has an intuitive web interface that guides you through the setup process and allows you to customize your settings according to your needs.

Frequency Supported (For North American Operator)

  • 5G NR NSA: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
  • 5G NR SA: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
  • 5G DL 4 × 4 MIMO: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77, n78
  • 4G (LTE-FDD): B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B66, B71
  • 4G (LTE-TDD): B38, B41, B42, B43, B48

Technical Specification

Get geeky with the Full Technical Specifications below.

Mobile Module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
SMS/Call SMS Status, SMS Configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White List Operator black/white list
Band Management Band lock, Used band status display
Bridge Mode Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Gateway assigns its mobile WAN IP address to another device on the LAN
Multiple PDN Possibility to use different PDNs for multiple network access and services
Wireless Mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi Security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP , TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
WiFi Users Up to 150 simultaneous connections
Wireless Hotspot Captive Portal (Wi-Fi Hotspot), Internal/External Radius server, built-in customizable landing page
Wireless Mesh/Roaming Wireless Mesh (802.11s), fast roaming (802.11r)
WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
Routing Static Routing, Dynamic Routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port Forwards, Traffic Rules, Custom Rules
DHCP Static and Dynamic IP Allocation
DDNS Supported >25 service providers, others can be configured manually
SSHFS Possibility to mount remote file system via SSH protocol
Authentication Pre-shared key, digital certificates, X.509 Certificates
Firewall Pre-configured firewall rules can be enabled via the WebUI, and unlimited firewall configuration via CLI; NAT; NAT-T
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Set up custom data limits for SIM card
WEB Filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
GRE Tunnel GRE Tunnel
IPSec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
SSTP SSTP client instance support
STUNNEL Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN DMVPN, Is a Method of building scalable IPsec VPNs
PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support
WireGuard WireGuard VPN client and server support
ZeroTier ZeroTier VPN
ID Filtering Respond to one ID in the range [1;255] or any
Allow Remote Access Allow access through WAN
Custom Registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
Supported Functions 01, 02, 03, 04, 05, 06, 15, 16
Supported Data Formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker
Supported Modes TCP Master, DNP3 Outstation
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
Clouds of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
CALL Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
CPU MediaTek MT7621A, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256 MB (100 MB available for userspace)
FLASH storage 256 MB (80 MB available for userspace)
WEB UI Update FW from a file, check FW on the server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing the current configuration
Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
Server Software Supports server software: TAVL, RMS
Geofencing Multiple configurable geofence zones
Data rate USB 2.0
Applications Samba share, USB-to-serial, Modbus gateway
External Devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage Formats FAT, FAT32, NTFS
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events SMS, Email, RMS
I/O juggler Allows setting certain I/O conditions to initiate an event
Connector 4-pin industrial DC power socket
Input Voltage Range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Mode B, LAN1 Port, 9 - 50 VDC
Power Consumption Idle: <5 W / Max: <18 W
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
SIM 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin DC power connector
Antennas 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
Casing Material Aluminum housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 519 g
Mounting Options DIN rail (can be mounted on two sides), flat surface placement
Operating Temperature -40 °C to 75 °C
Operating Humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30


What Do You Get When You Order This 5G Router?

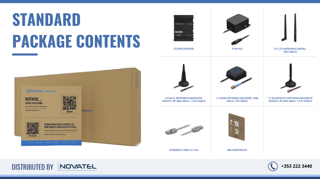

Reference Image: Teltonika RUTX50 Standard Package Content Photos

Standard Package Contains:

  • The RUTM50 Unit
  • 18W PSU
  • 4 x Mobile antennas (swivel, SMA male)
  • 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5m cable)
  • 1 x GNSS antenna (adhesive, SMA male, 3m cable)
  • Ethernet Cable (1.5m)
  • SIM Adapter Kit
  • QSG (Quick Start Guide)
  • Packaging box
