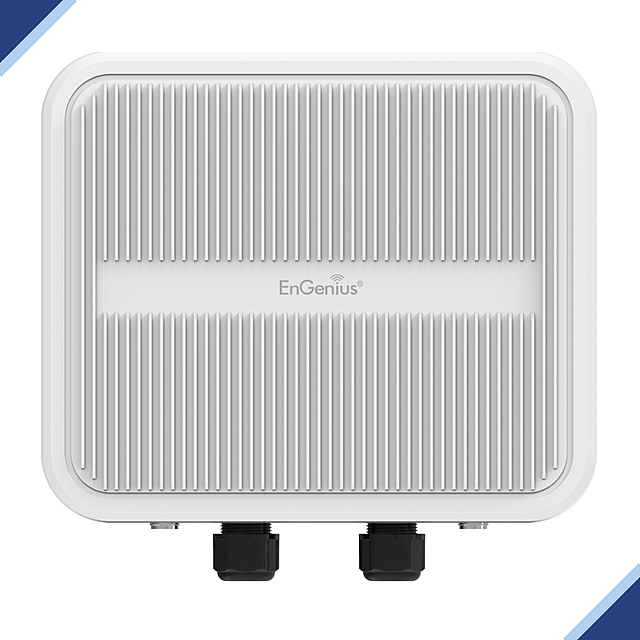

EnGenius EOC655-C18: 2x2 Dual 5GHz Radios Outdoor IP67 Fixed Wireless Access Point with 18dBi Panel Antenna

EnGenius EOC655-C18: 2x2 Dual 5GHz Radios Outdoor IP67 Fixed Wireless Access Point with 18dBi Panel Antenna

Available to Order

Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.

Ex Tax: €1,095.94
  • Stock: Delivery Lead Time: 5-7 Days
  • Brand: EnGenius
  • Model: EOC655-C18
  • Dimensions: 267.00mm x 82.00mm x 227.00mm
  • EAN: 0912A0534300
  • MPN: EOC655-C18
WEEE Recycling Charge

Included in the Price of this Product is the WEEE Recycling Charge.

Elevate your network to new heights with the EnGenius EOC655-C18 – the pinnacle of outdoor wireless connectivity! This remarkable device is a powerhouse outdoor access point, boasting dual 5GHz radios and an integrated 18dBi directional antenna for unparalleled performance. Tailored for ISPs and smart cities, this device conquers the challenges of dense RF environments, delivering superior throughput and versatility for both Point-to-Point (PtP) and Point-to-Multipoint (PtMP) applications, and Rural Internet Distribution via Wireless Technology operations.

EnGenius EOC655 Long-range Weather-proof IP67 Outdoor Access Point in Ireland
Long-range Weather-proof IP67 Outdoor Wi-Fi Access Point with Built-in 18dBi Panel Antenna

Key Features

Main features include:

  • IP67-rated durability
  • 18dBi high-gain directional antenna
  • Built-in GPS for precise network mapping
  • AES-256 encryption for uncompromised security
  • Dual 5GHz radios with up to 2 Gbps link capacity
  • Integration with SkyPoint NMS for centralized management

These features ensure that the EOC655-C18 not only extends your network’s reach but does so with robust security and stability, even in the harshest outdoor conditions. The unit’s high-gain antenna and dual radios are engineered to maximize coverage and throughput, making it a linchpin for efficient network expansion.


It streamlines network management, reduces operational costs, and provides a reliable communication backbone that scales with your needs.

Other benefits of using the EOC655-C18 include:

  • Enhanced throughput in dense RF environments
  • Long-range connectivity for expansive networks
  • Resilient performance in extreme weather conditions

Technical Specifications

Get geeky with the full technical specs below.

Chipset Qualcomm Chipset – Dual Core ARM A53 CPU @ 1.0 GHz
Standards IEEE 802.11AX on 5 GHz
Memory DDR3 1GB, Flash 32MB, eMMC 8GB
GPS On board GPS with integrated Antenna, 1PPS pulse, GPS Synchronization
Dying Gasp 40ms (Max)
Thermal Sensor To monitor board temperature
Compass Sensor (magnetometer) Antenna Alignment
Bluetooth For Radio Management
Antenna 2x 2.4GHz: 3.5dBi (Integrated Omni-Directional)
2x 5GHz (Radio1): 18dBi Intergrated Panel Antenna
2x 5GHz (Radio2): N-Type Connector
External Antenna Connector Type N-Type Female
Physical Interfaces 1x 1G LAN-1 port (802.3at PoE)
1x 2.5G LAN-2 port (Proprietary PoE)
Power Source IEEE802.3at or Proprietary 48V/1A or Direct DC Input up-to 56V LAN2 Port
Wireless & Radio Specifications
Operation Modes AP/STA
Base Station (BSU), Subscriber (SU)
Max Subscribers 16 per radi
MAC Protocol Proprietary polling based on OFDMA Scheduling Protocol
Frequency Bands 5.1 GHz – 5.9 GHz (Broadband Connectivity)
2.4 GHz / Bluetooth (Radio Management)

Note: The range of frequencies your device can operate on might differ based on the specific regulations of the country or area you’re in. Specifically for Ireland, if you intend to use this Access Point (AP) within the 5.8GHz frequency band, you must adhere to the regulations set forth by ComReg.

Channel Bandwidth 20 / 40 / 80 / 160 MHz
Channel Spacing 5 MHz
Max Transmit Power Up to 27dBm (Combined)
Dynamic Data Rate Selection (DDRS) Automatically detect optimal data rate for a given link
Dynamic Channel Selection (DCS) Selects optimal channel to operate to maintain SLAs (CIR & MIR)
Auto Transmit Power Control (ATPC) Automatically adapt the transmit power
Interference Mitigation Auto Channel Selection (ACS), Dynamic Channel Selection (DCS), and Background Scan (BG Scan) features aid in adapting to varying RF medium
Encryption AES 256
Spectrum Analyzer Provides RF medium statistics
Radio Chains Dual 2x 2:2
Supported Modulation 802.11ax (or Wi-Fi 6): BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Ethernet 1 x GbE LAN-1 Port
1 x 2.5GbE LAN-2 Port
Speed 10/100/1000/2500Mbps, Half/Full Duplex, Auto-Negotiation
Jumbo Frame 9K bytes
PoE Source Passive 48V/1A, 6KV Surge Protection
Cable Length STP Cat5e: MAX 130 meters
FTP Cat6: MAX 180 meters
Surge Protection 6KV Surge Protection on Ethernet Ports
Maximum Power Consumption 21W
Management Features
SNMP v1, v2c, v3
Authentication Internal MAC Address Control List, Radius-based Authentication
Traffic Shaping Downlink and Uplink Traffic Shaping
Remote SSH, Web, TFTP, HTTP, HTTPS, Syslog
Smart Phone Android & IOS-based Application for Radio Management
Antenna Alignment Alignment aid provided via variable audible tone generation algorithm
Operating Mode Bridging
IP Stack IPv4, IPv6
VLAN Tagging 802.1Q: Transparent, Access, Trunk, Q-in-Q
Gateway Features DHCP Server
MAC-in-MAC To improve the multicast traffic performance, IGMP Snooping
Ethernet-OAM Fault Link Management
Packet Filtering MAC, IP, Protocol, Port
NTP Server Stratum 1 NTP Server using GPS – less than 1msec accuracy
Asymmetric Bandwidth Control Asymmetric UL/DL committed and maximum information rate per Service Flow
Packet Classification Capabilities 802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Scheduling Real-Time priority-based services
Environmental & Physical
Temperature Range Operation: -10°C to +60°C / -14°F to +140°F
Storage: -30°C to +80°C / -22°F to +176°F
Humidity (Non-condensing) Operating: 90% or less
Storage: 90% or less
IP Rating IP67 Rated
Wind loading 200Kmph
ESD Protection Contact: 4KV Air: 8KV
Weight 1.91 kgs / 4.21 lbs
Dimensions 267x227x82mm
267x255.1x82mm (w/n-type & cable gland)
Safety Compliance CB
RoHS Yes
Regulatory Compliance FCC
MTBF 100K hours

EOC655EOC655-C18 vs. EOC655

See the quick comparison table between the two outdoor access points below.

  EOC655 EOC655-C18
Integrated Antenna NA 18 dBi Integrated Long-range Directional Antenna
External Antenna N-Type / N-Type 18dBi / N-Type
Wi-Fi Standard 802.11a/n/ac/ax 802.11a/n/ac/ax
Radio 5 GHz / 5GHz 5 GHz / 5GHz
Max. Data Rates(5 GHz) up to 2.4 Gbps up to 2.4 Gbps
Radio Chains 2 x 2:2 (per radio) 2 x 2:2 (per radio)
Transmit Power on(5 GHz) 24dBm / 21dBm 24dBm / 21dBm
Power-over-Ethernet 802.3af/at / Proprietary 56V 802.3af/at / Proprietary 56V
Ethernet Ports 1x 2.5G 802.3at PoE Port
1x GE Proprietary PoE Port
6KV Cable Surge Protection on all ports
1x 2.5G 802.3at PoE Port
1x GE Proprietary PoE Port
6KV Cable Surge Protection on all ports
Mounting Type Pole Mount Pole Mount
IP Rating IP67 IP67
Dimensions 267x227x82mm; 267x258.1x82mm (w/n-type & cable gland) 267x227x82mm; 267x255.1x82mm (w/n-type & cable gland)
EnWiFi App Yes (SkyConnect) N/A

Package Contents

Standard Goodies Inside:

  • 1x EOC655-C18 Unit
  • 1x Pole-Mounting Brackets
  • 1x PoE Injector with AC Power Cable
  • 1x Ethernet Cable Cat5e 1.5m
  • 1x Grounding Cable 1.8m
  • Packaging box, to keep or recycle
