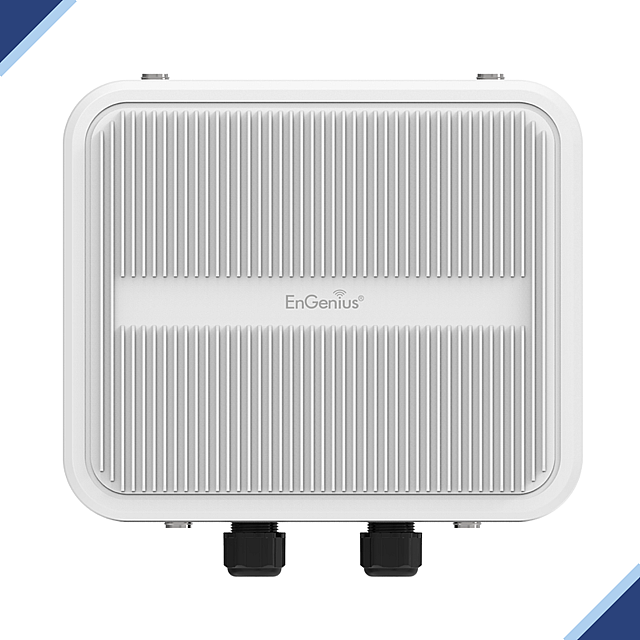

EnGenius EOC655: 2x2 Dual 5GHz Radios Outdoor IP67 Fixed Wireless Access Point For Point-to-point or Point-to-Muli-Point

EnGenius EOC655: 2x2 Dual 5GHz Radios Outdoor IP67 Fixed Wireless Access Point For Point-to-point or Point-to-Muli-Point

Available to Order

Currently not in stock, available to order. Take note of the Estimated Delivery Lead Time below for this specific item, before placing your order(s), so you'd know when to expect delivery. Contact us for order-related enquiries.

Ex Tax: €995.94
  • Stock: Delivery Lead Time: 5-7 Days
  • Brand: EnGenius
  • Model: EOC655
  • Weight: 2.02kg
  • Dimensions: 267.00mm x 82.00mm x 227.00mm
  • EAN: 0912A0538300
  • MPN: EOC655
WEEE Recycling Charge

Included in the Price of this Product is the WEEE Recycling Charge.

Discover unparalleled connectivity with the EnGenius EOC655 – the cornerstone of robust outdoor wireless networks! This AP unit is a formidable outdoor 5GHz dual radio 2x2 access point, equipped with N-Type connectors and designed to excel in dense RF environments. It’s crafted for ISPs and smart cities, solving the complex challenges of providing stable, high-speed internet in extensive and demanding outdoor settings.

Key Features

The Key features of the EnGenius EOC655 include:

  • IP67-rated durability
  • AES-256 encryption for security
  • Built-in GPS for network mapping
  • SkyPoint NMS for centralized management
  • Dual 5GHz radios with up to 2 Gbps link capacity

These features ensure that the EOC655 provides consistent, high-capacity connectivity, withstands harsh environmental conditions, and offers secure, manageable network expansion. Deploy with ease using the integrated mobile app, and rest assured that your network is optimized for peak performance with automatic RF corrections and dynamic data rate adjustments.

EnGenius EOC655 Long-range Weather-proof IP67 Outdoor Access Point in Ireland
Long-range Weather-proof IP67 Rated Outdoor 5GHz Wi-Fi Access Point

Technical Specifications

Get geeky with the technical specs below.

Chipset Qualcomm Chipset – Dual Core CPU, ARM A53, 1.0 GHz
Standards IEEE 802.11ax on 5 GHz
Memory DDR3 1GB, Flash 32 MB, eMMC 8GB
GPS On board GPS with integrated Antenna, 1PPS pulse, GPS Synchronization
Dying Gasp 40ms (Max)
Thermal Sensor To monitor board temperature
Compass Sensor (magnetometer) Antenna Alignment
Bluetooth For Radio Management
Antenna 2x 2.4GHz: 3.5dBi (Integrated Omni-Directional)
2x 5GHz (Radio1): N-Type Connector
2x 5GHz (Radio2): N-Type Connector
External Antenna Connector Type N-Type Female
Physical Interfaces 1x 1G LAN-1 port (802.3at PoE)
1x 2.5G LAN-2 port (Proprietary PoE)
Power Source IEEE802.3at or
Proprietary 48V/1A or Direct DC Input up-to 56V LAN2 Port
Wireless & Radio Specifications
Operation Modes AP/STA
Base Station ( BSU ), Subscriber ( SU )
Max Subscribers 16 per radio
MAC Protocol Proprietary polling based on OFDMA Scheduling Protocol
Frequency Bands 5.1 GHz – 5.9 GHz (Broadband Connectivity)
2.4 GHz / Bluetooth (Radio Management)

Note: The range of frequencies your device can operate on might differ based on the specific regulations of the country or area you’re in. Specifically for Ireland, if you intend to use this Access Point (AP) within the 5.8GHz frequency band, you must adhere to the regulations set forth by ComReg.

Channel Bandwidth 20 / 40 / 80 / 160 MHz
Channel Spacing 5 MHz
Max Transmit Power Up to 27 dBm (Combined)
Dynamic Data Rate Selection (DDRS) Automatically detect optimal data rate for given link
Dynamic Channel Selection(DCS) Selects optimal channel to operate to maintain SLAs (CIR & MIR)
Auto Transmit Power Control (ATPC) Automatically adapt the transmit power
Interference Mitigation Auto Channel Selection (ACS), Dynamic Channel Selection (DCS), Background Scan (BG Scan) features aid to adapt to varying RF medium
Encryption AES 256
Spectrum Analyzer Provides RF medium statistics
Radio Chains Dual 2x 2:2
Supported Modulation 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Ethernet 1 x GbE LAN-1 Port
1 x 2.5GbE LAN-2 Port
Speed 10/100/1000/2500Mbps, Half/Full Duplex, Auto-negotiation
Jumbo Frame 9K bytes
PoE Source Passive 48V/1A, 6KV Surge Protection
Cable Length STP Cat5e: MAX 130 meters
FTP Cat6: MAX 180 meters
Surge Protection 6KV Surge Protection on Ethernet Ports
Maximum Power Consumption 21W
Management Features
SNMP v1, v2c, v3
Authentication Internal MAC Address Control List, RADIUS-based Authentication
Traffic Shaping Downlink and Uplink Traffic Shaping
Remote SSH, Web, TFTP, HTTP, HTTPS, Syslog
Smart Phone Android & IOS-based Application for Radio Management
Antenna Alignment Alignment aid provided via variable audible tone generation algorithm
Operating Mode Bridging
IP Stack IPv4, IPv6
VLAN Tagging 802.1Q: Transparent, Access, Trunk, Q-in-Q
Gateway Features DHCP Server
MAC-in-MAC To improve the multicast traffic performance, IGMP Snooping
Ethernet-OAM Fault Link Management
Packet Filtering MAC, IP, Protocol, Port
NTP Server Stratum 1 NTP Server using GPS – less than 1msec accuracy
Asymmetric Bandwidth Control Asymmetric UL/DL committed and maximum information rate per Service Flow
Packet Classification Capabilities 802.1p priority, IPTOS, VLAN ID, IP addresses, ports, Ethernet addresses, IP protocol, and Ether Type. Support maximum 4 SFC’s with maximum 32 PIR’s
Scheduling Real Time priority-based services
Environmental & Physical
Temperature Range Operation: -10°C to +60°C / -14°F to +140°F
Storage: -30°C to +80°C / -22°F to +176°F
Humidity (Non-condensing) Operating: 90% or less
Storage: 90% or less
IP Rating IP67
Wind loading 200Kmph
ESD Protection Contact: 4KV Air: 8KV
Weight 2.02 kgs / 4.45 lbs
Dimensions 267x227x82mm
267x258.1x82mm (w/n-type & cable gland)
Safety & Regulatory Compliance CB, WEEE, RoHS, FCC

EOC655 Versus EOC655EOC655-C18

See the quick comparison table between the two outdoor access points below.

  EOC655 EOC655-C18
Integrated Antenna NA 18 dBi Integrated Long-range Directional Antenna
External Antenna N-Type / N-Type 18dBi / N-Type
Wi-Fi Standard 802.11a/n/ac/ax 802.11a/n/ac/ax
Radio 5 GHz / 5GHz 5 GHz / 5GHz
Max. Data Rates(5 GHz) up to 2.4 Gbps up to 2.4 Gbps
Radio Chains 2 x 2:2 (per radio) 2 x 2:2 (per radio)
Transmit Power on(5 GHz) 24dBm / 21dBm 24dBm / 21dBm
Power-over-Ethernet 802.3af/at / Proprietary 56V 802.3af/at / Proprietary 56V
Ethernet Ports 1x 2.5G 802.3at PoE Port
1x GE Proprietary PoE Port
6KV Cable Surge Protection on all ports
1x 2.5G 802.3at PoE Port
1x GE Proprietary PoE Port
6KV Cable Surge Protection on all ports
Mounting Type Pole Mount Pole Mount
IP Rating IP67 IP67
Dimensions 267x227x82mm; 267x258.1x82mm (w/n-type & cable gland) 267x227x82mm; 267x255.1x82mm (w/n-type & cable gland)
EnWiFi App Yes (SkyConnect) N/A

Package Contents

Standard Goodies Inside:

  • 1x EOC655 Outdoor Access Point
  • 1x Pole-Mounting Brackets
  • 1x PoE Injector with AC Power Cable
  • 1x Ethernet Cable Cat5e 1.5m
  • 1x Grounding Cable 1.8m
  • Packaging box, to keep or recycle

How & Where to Buy?

Don’t miss out – enhance your network today and stay ahead of the connectivity curve!

To buy the EnGenius EOC655 Outdoor Access Point, you can drop by (requires prior appointment) our store located at Novatel Communications, Main St, Buttevant, Co. Cork, P51 K066, Ireland.

To order online, click on the Add to Cart button, and then go through the fast, easy, and secure checkout process. Payment is provided for your convenience via Authipay Payment Gateway. You can use any supported cards (MasterCard, Visa, etc).

How Will My Order Be Delivered?

Your order(s) will be shipped via express delivery and are typically delivered within 1-4 business days. Your order will be dispatched directly from our warehouse and you will be provided a piece of tracking information for your order after it is dispatched. If you have any questions about your order status, don’t hesitate to get in touch with us.

The EnGenius EOC655 redefines outdoor wireless networking with its superior performance and resilience. Offering unmatched features and benefits, it stands as the strategic choice for expanding your network’s capabilities. Choose the EOC655 for a robust, efficient, and future-proof network solution – because your connectivity should know no bounds.

Unleash the potential of your network with EnGenius Access Points and Wi-Fi Devices, proudly presented by Novatel, Ireland’s EnGenius Reseller. Experience seamless connectivity and robust performance tailored for your needs.

Dive into our extensive range of EnGenius solutions and discover more innovative products from the EOC Series by following the link. Your journey towards enhanced wireless networking begins here.
