Poynting EPNT Outdoor Panel Antenna & Waterproof Router/Modem Enclosure In One Single Unit - Main
- Stock: In Stock
- Brand: Poynting
- Model: EPNT-XX
- Weight: 2.17kg
- Dimensions: 45.00cm x 27.00cm x 18.00cm
- EAN: EPNT-XX
- MPN: EPNT-XX
Suitable Routers
The Samrand-based antenna manufacturer has launched another series of quality cellular antenna called ePoynt Series, it is a 5dBi omnidirectional (the EPNT-1) 4×4 MIMO 4G/5G outdoor panel antenna and a router/modem enclosure, that you can use to amplify signal reception for 4G LTE or 5G. Also works as a Wi-Fi antenna. The EPNT-2 variant on the other hand is a directional antenna, which is ideal for long-distance cellular connection.
It is a uniquely designed outdoor and all-weather cellular antenna kit, equipped with cross-polarized omnidirectional antennas, supporting 4x4 MIMO or dual 2x2 MIMO antenna configuration, which significantly improves signal reception from 4G or 5G network mast from any direction.
This specific model is also capable of supporting dual-band Wi-Fi signal enhancement, and able to operate under 2.4 and 5-6 GHz frequency ranges, very ideal for industrial use as well as for home use. It can provide better network coverage to densely populated, huge outdoor areas, and other industrial applications.
Key Features
- Function as Modem/Modem Weather-proof box, that lets you mount or install your cellular router or modem outdoors (able to accept routers like Teltonika RUT240 or RUT360, devices with up to 185x145x45mm dimension)
- Cross-Polarised, High-performance Antennas
- All-weather, dust and vandal-resistant housing (IP 65)
- Frequency Range: 617-3800 MHz (for 2G, 3G, 4G, 5G, WiFi)
- 2x2 MIMO Dual-band 2.4 GHz and 5GHz Wi-Fi Antennas
- 4x4 MIMO 4G/5G antenna
Use Case
- Internet and Network Distribution and Backhaul
- Outdoor antenna for Fixed Wireless Access (FWA)
- Urban and rural household reception enhancement
- Industrial and commercial 5G/LTE deployment
- Point-to-Point Wireless Network Bridge
- Consumer 5G/LTE internet connectivity
- SmartHome and SmartCity Network Build
- Oil & Gas communication systems
EPNT-1 vs. EPNT-2
| EPNT-1 | EPNT-2 | |
| Frequency Bands | 617-960 MHz 1427-2700 MHz 3400-3800 MHz |
617-960 MHz 1427-2700 MHz 3400-3800 MHz |
| Network | 5G / 4G LTE 2.4-2.5GHZ / 5.0-7.2GHZ WIFI |
5G / 4G LTE 2.4-2.5GHZ / 5.0-7.2GHZ WIFI |
| MIMO | 4x4 for 5G & 4G LTE 2x2 for 2.4Ghz & 5GHz Wi-Fi |
4x4 for 5G & 4G LTE 2x2 for 2.4Ghz & 5GHz Wi-Fi |
| Peak Gain | 5dBi on the 5G & 4G LTE 7.5dBi on the Wi-Fi |
11dBi on the 5G & 4G LTE 7.5dBi on the Wi-Fi |
| Directionality | Omnidirectional | Unidirectional |
Downloads
Technical Drawings
Can be used as a 5G/4G Antenna and an Outdoor Router Enclosure at the Same Time, All in One Housing
Internal Components Of The Poynting EPNT Outdoor Router Enclosure and Panel Antenna

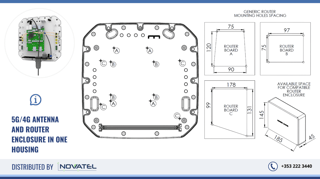

Router Sizing Guide For the ePoynt
Shipping Details
| SKU | A-EPNT-0001-V1-01 |
|---|---|
| EAN | 6009710922521 |
| HS Code | #85291069 |
| Packaged Weight | 2.17kg |
| Packaged Dimensions | 410 x 280 x 177 mm |
| Master Box QTY | 6 |
| Master Box Weight | 14.68kg |
| Master Box Dimensions | 1125 x 430 x 330 mm |
