Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One

Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
Poynting EPNT-2 Outdoor Unidirectional Panel Antenna & Waterproof Router/Modem Enclosure In One
€283.00
Ex Tax: €230.08
  • Stock: In Stock
  • Brand: Poynting
  • Model: EPNT-2
  • Weight: 2.17kg
  • Dimensions: 41.00cm x 28.00cm x 17.70cm
  • EAN: 6009710923380
  • MPN: A-EPNT-0002-V2-01

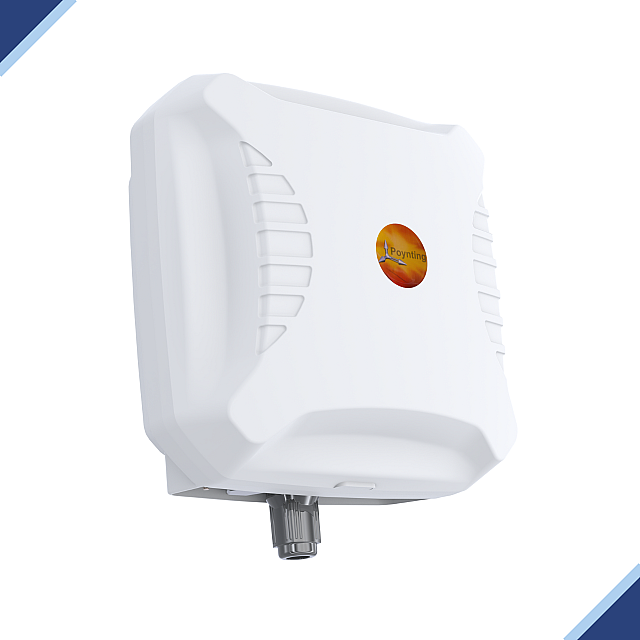

The Poynting EPNT-2 (also known as ePoynt-2) is like an XPOL-2-5G, but on Steroids. That is so, because it is not just a directional outdoor panel antenna, but also a router/modem enclosure, which you can use to mount, install or house your router/modem and securely place it outdoors, up high on a pole.

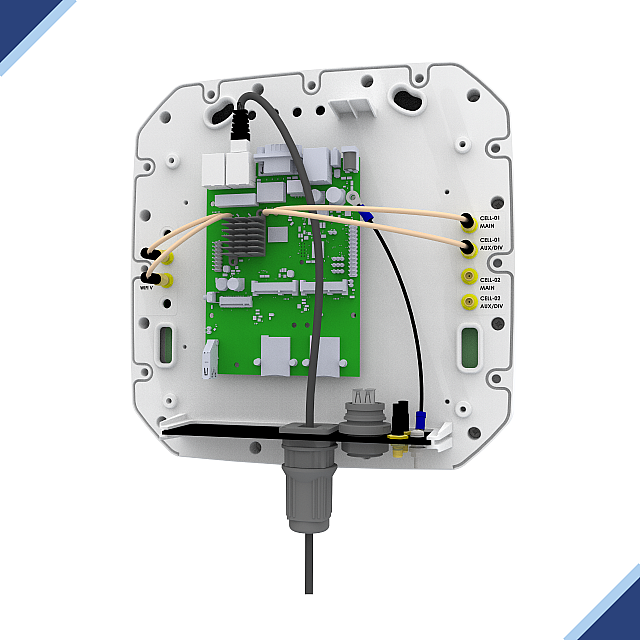

The antenna design greatly eliminates signal loss, eliminating the need to do an extra long coax cable run between the outdoor antenna and the 4G router. You can kiss your cable goodbye since you can mount the router in the antenna itself, so no more long cable runs. You can simply mount your 4G router inside the housing and attach it to cable ports. Read the User Manual to know how you would do this.

In addition, this particular antenna model is uniquely equipped with four cross-polarised cellular antennas, with two uni-directional antennas, that lets you achieve an 11dBi peak gain on the 4G LTE side, while 5dBi on its two omnidirectional antennas. This set of features makes the ePoynt-2 ideal for 4×4 MIMO or dual 2×2 MIMO applications. You can use the two omni-directional antennas as WiFi antennas (works on 2.4 and 5/6GHz). See Antenna Overview for more details.

Read Tech Specs below, to know more.

Key Features: A Waterproof Router Enclosure and a 4G/5G Antenna All-in-one Unit

  • Frequency Bands Supported (2G, 3G, 4G, 5G, and Wi-Fi): 698-960 MHz; 1710-2700 MHz; 3400-3800 MHz
  • Exceptional high gain performance over the main 4G/5G bands
  • All-Weather, dust, and vandal resistant enclosure (IP 65)
  • 2x2 MIMO dual-band 2.4 GHz and 5 GHz Wi-Fi antennas
  • Cross-polarised antennas for improved performance
  • Antenna enclosure with high-performance antennas
  • New advanced meta-material technology

Use Case

  • Smart environmental, water systems for M2M & IoT, SmartHome and SmartCity Network Builds
  • Wi-Fi Hotspot Application for multiple guest client connection
  • Internet and Network Distribution and Backhaul
  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Urban and rural household reception enhancement
  • Industrial and commercial 5G/LTE deployment
  • Point-to-Point Wireless Network Bridge
  • Consumer 5G/LTE internet connectivity
  • Oil & Gas communication systems

YouTube Video Presentation

NOTE: The router brand/make shown in the video is the popular Teltonika RUT240. One of our best selling cellular network connectivity solution. Also, you can use other Teltonika Routers such as the RUT360, or the Zyxel NR5103E Three UK Branded router.

Antenna Overview

LTE WIFI
Ports Cell 1 & Cell 2* Main
Cell 1 & Cell 2* Aux/Div
1 & 2
SISO / MIMO 4x4 MIMO 2x2 MIMO
Frequency Bands 698 - 3800 MHz 2400 - 2500 MHz
5000 - 7200 MHz
Peak Gain 11 dBi 7 dBi
Connector Type * SMA (F) SMA (F)
The connectors are factory mounted to the antenna
Additional pigtails (not supplied) are required to connect the antenna to the router
See the accessories section at the end of this document for pigtail options offered
Cell 2 offers two Omni-directional antennas for diversity and 4 x 4 MIMO functionality.

EPNT-2 vs. EPNT-1

EPNT-1 EPNT-2
Frequency Bands 617-960 MHz
1427-2700 MHz
3400-3800 MHz
617-960 MHz
1427-2700 MHz
3400-3800 MHz
Network 5G / 4G LTE
2.4-2.5GHZ / 5.0-7.2GHZ WIFI
5G / 4G LTE
2.4-2.5GHZ / 5.0-7.2GHZ WIFI
MIMO 4x4 for 5G & 4G LTE
2x2 for 2.4Ghz & 5GHz Wi-Fi
4x4 for 5G & 4G LTE
2x2 for 2.4Ghz & 5GHz Wi-Fi
Peak Gain 5dBi on the 5G & 4G LTE
7.5dBi on the Wi-Fi
11dBi on the 5G & 4G LTE
7.5dBi on the Wi-Fi
Directionality Omnidirectional Unidirectional

Technical Specification

Electrical Specifications - Cellular
Frequency Bands 698 - 960 MHz
1710 - 2700 MHz
3400 - 3800 MHz
Gain (max) 8.5 dBi @ 698 - 960 MHz
9 dBi @ 1710 - 2700 MHz
11 dBi @ 3400 - 3800 MHz
VSWR <2:1 over 90% of the band
Feed Power Handling 10 W
Input Impedance 50 Ohm (nominal)
Polarisation Cell 1: ±45°
Cell 2: Vertical & Horizontal linear
Path to Ground Yes
Electrical Specifications - Wi-Fi
Frequency Bands 2400 - 2500 MHz
5000 - 7200 MHz
Gain (Max) 3 dBi @ 2400 - 2500 MHz
7 dBi @ 5000 - 7200 MHz
VSWR <3:1
Feed Power Handling 10 W
Nominal Input Impedance 50 Ohm (nominal)
Polarisation ±45° Linear
Path to Ground Yes
Mechanical Specifications
Product Dimensions 260 mm x 264 mm x 168 mm
Maximum Router Dimensions 185 mm x 145 mm x 45 mm
Packaged Dimensions 410 mm x 280 mm x 177 mm
Weight 1.43 kg
Packaged Weight 2.17 kg
Radome Material UV Stable ASA
Radome Colour Brilliant White
Pantone P 179-1C
Mounting Type Wall/ Pole and Window Mounted
Environmental Specifications, Certification & Approvals
Wind Survival ≤220 km/h
Temperature Range (Operating) -40°C to +80°C
Environmental Conditions Outdoor/Indoor
Water Ingress Protection Ratio/Standard IP65
Salt Spray MIL-STD 810G/ASTM B117
Operating Relative Humidity Up to 98%
Storage Humidity 5% to 95% - non-condensing
Storage Temperature -40°C to +80°C
Enclosure Flammability Rating UL 94-HB
Impact Resistance IK 08
Product Safety & Environmental Complies with CE and RoHS standards
Ordering Information
Commercial Name EPNT-2
Order Product Code A-EPNT-0002-V1-01
EAN Number 6009710922019

Where To Buy?

You can order the Poynting EPNT-2 Antenna Weather-proof Router Box online using Add to Cart button. Then go through the checkout page and process your order. You can pay securely using your Credit Card via our secure page, powered by Stripe Payment Gateway or AIB Authipay Gateway.

You could also drop by and buy from our physical store, Novatel Communications, Main Street, Buttevant, Co. Cork.

Shipping Details

SKU A-EPNT-0002-V2-01
EAN 6009710923382
HS Code #85291069
Packaged Weight 2.17kg / 4.79lbs
Packaged Dimensions 410 x 280 x 177 mm
16.14 x 11.02 x 6.97 inch
Master Box QTY 6
Master Box Weight 14.68kg / 32.36lbs
Master Box Dimensions 1125 x 430 x 330 mm
44.29 x 16.93 x 13 inch
