Poynting LPDA-92 4G/5G Directional Antenna For Routers & IoT Devices
- Stock: In Stock
- Brand: Poynting
- Model: LPDA-92-X-X
- Weight: 2.02kg
- Dimensions: 112.00cm x 21.00cm x 6.00cm
- MPN: LPDA-92-X-X
Compatible Devices
This high-gain all-band antenna is one of our most popular products. The antenna covers virtually all of the international wireless, cellular, and mobile data bands. These bands include GSM 900, GSM 1800, UMTS, and LTE and therefore it can be configured for a wide variety of wireless communication systems.
This includes the so-called Digital Divergent Bands for European markets and the USA and the licensed and unlicensed bands in the 2.3 to 2.7 GHz data bands. The High-Gain All Band Antenna has proven highly successful in a wide variety of climates and conditions, including the tropics, desert climates, and the cold of Nordic winters. The antenna is weather-resistant and highly robust in design.
Using the High-Gain All Band Antenna can support wireless data in weak signal areas and it has been successful in offering wireless services in more remote and even rural areas. Please have a look at the attached product data and available downloadable documentation for more information on this product.
Configuration Options
LPDA-92 LTE 2×2 MIMO (DOUBLE)
The factory-supplied cable is 7m. If you want to add, then you could use up to 10 meters - but sold separately. There is loss per meter so we would advise people to stay within the 7m if at all possible.

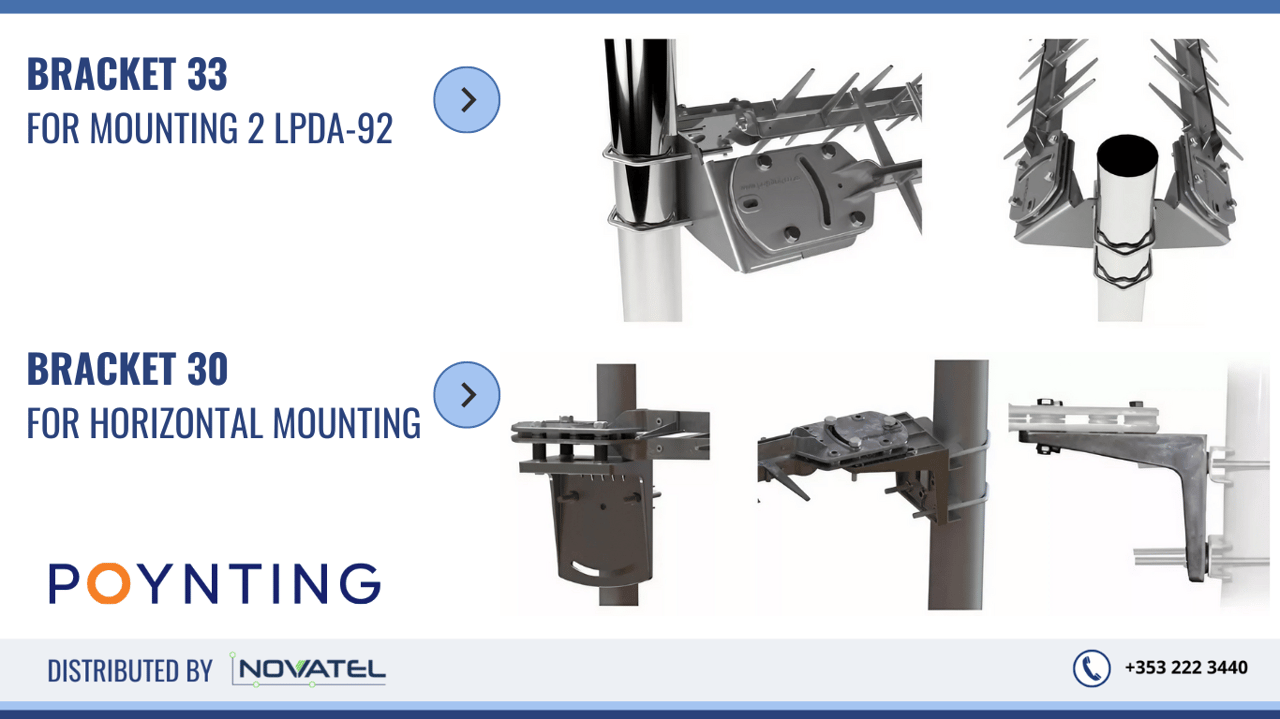

When dual mounted (either 2 x 45 degrees or 1 x horizontal plus 1 x vertical the product can be used for LTE). Needs a special mounting bracket (BRKT 33 - included in Double Antenna Option for 45° mounting option). BRKT 30 is used for a horizontal mounting position (sold separately).
When configuring for 5G Router, make sure you use 4x4 MIMO configuration for best performance (you will need 4x LPDA-92 or LPDA-92-4).
Ordering Information
| SKU | LPDA-0092 | LPDA-0092-04 |
|---|---|---|
| EAN | 6009693810556 | 0707273469120 |
| HS Code | #85291069 | #85291069 |
| Packaged Weight | 2.02kg | 1.93kg |
| Coax Cable Length | 7m | .3m |
| Connector Type | SMA Male | N-Type Female |
| Packaged Dimensions | 1120 x 210 x 60 mm | 1120 x 210 x 60 |
| Master Box QTY | 10 | 10 |
| Master Box Weight | 20.02kg | 19.37kg |
| Master Box Dimensions | 1140 x 435 x 330 mm | 1140 x 435 x 330 mm |
Downloads
